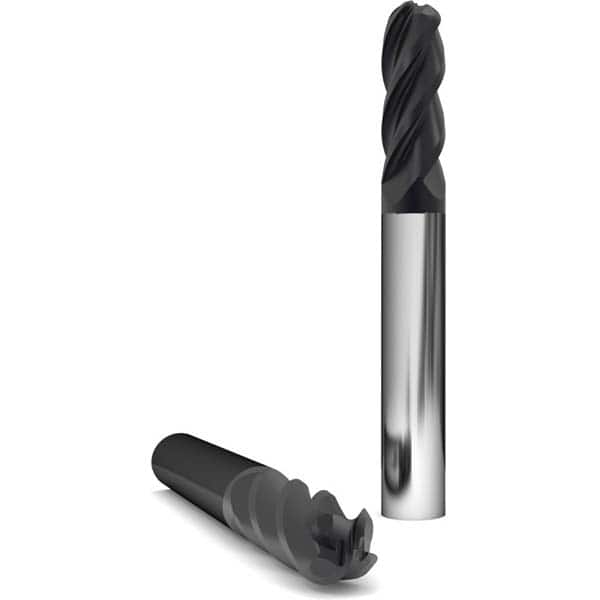

Ball End Mill: 0.1875″ Dia, 0.625″ LOC, 4 Flute, Solid Carbide 2″ OAL, 3/16″ Shank Dia, 38 ° Helix, AlCr Coated, Single End, Series 2115
Item #: 14238075
Brand: GWS
Model #: 311176
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Length of Cut (Inch) | 5/8 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Number Of Flutes | 4 |
| Extended Reach | No |
| Helix Angle | 38 |
| Undercutting | No |
| Variable Index | Yes |
| Length Of Cut Range (Decimal Inch) | 0.4000 to 0.7000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (mm) | 50.80 |
| Maximum Helix Angle | 38.00 |
| Material Grade | Micrograin |
| Series | 2115 |
| Centercutting | No |
| Single Or Double End | Single |
| Coating/Finish | AlCr |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
