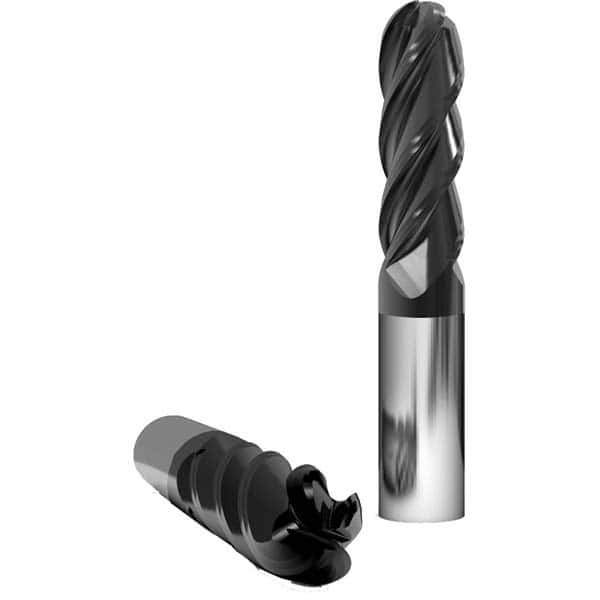

Ball End Mill: 0.625″ Dia, 1.25″ LOC, 4 Flute, Solid Carbide 3-1/2″ OAL, 5/8″ Shank Dia, Variable ° Helix, nACo Coated, Single End, Series 1032
Item #: 14237655
Brand: GWS
Model #: 120365
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 1-1/4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | No |
| Helix Angle | Variable |
| Undercutting | No |
| Variable Index | Yes |
| Length Of Cut Range (Decimal Inch) | 1.0000 to 1.5000 |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (mm) | 88.90 |
| Maximum Helix Angle | 38.00 |
| Material Grade | Micrograin |
| Series | 1032 |
| Centercutting | No |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | nACo |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
