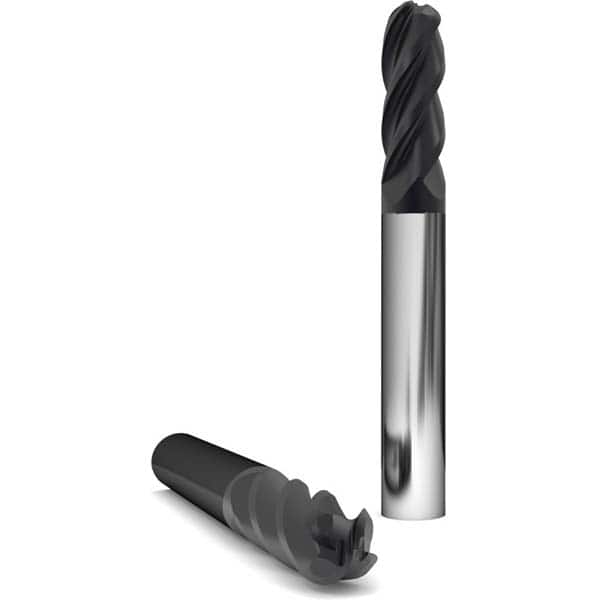

Ball End Mill: 0.625″ Dia, 1.25″ LOC, 4 Flute, Solid Carbide 3-1/2″ OAL, 5/8″ Shank Dia, 38 ° Helix, AlCr Coated, Single End, Series 2115
Item #: 14237192
Brand: GWS
Model #: 311214
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 1-1/4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Ball; Single |
| Extended Reach | No |
| Helix Angle | 38 |
| Undercutting | No |
| Variable Index | Yes |
| Length Of Cut Range (Decimal Inch) | 1.0000 to 1.5000 |
| Variable Helix | No |
| Length Type | Regular |
| Helix Style | Variable |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (mm) | 88.90 |
| Shank Diameter Tolerance | h6 |
| Maximum Helix Angle | 38.00 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | S; K |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 2115 |
| Flute Type | Variable Index |
| Centercutting | No |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlCr |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
 | |
| MSC Part # | 14237192 |
| Mfr Part # | 311214 |
