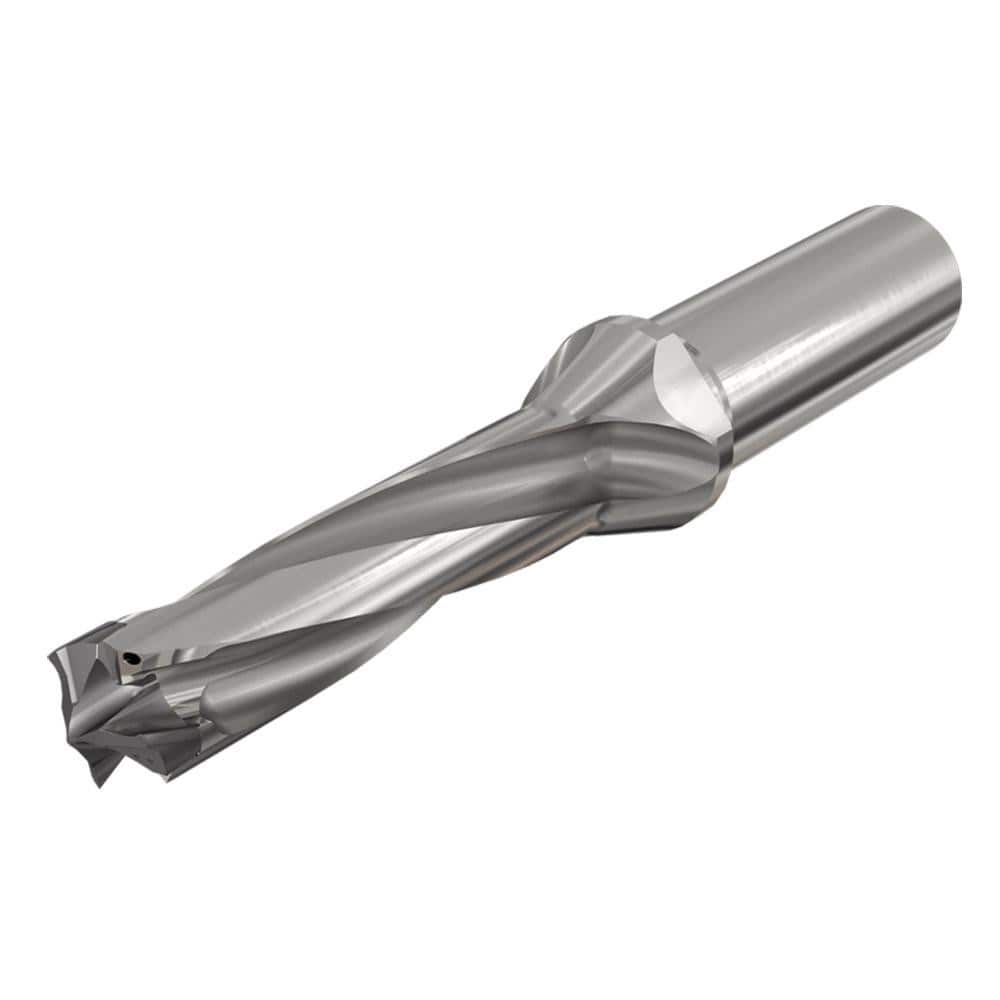

Replaceable Tip Drill: 0.787 to 0.823'' Drill Dia, 2.534″ Max Depth, 1'' Straight-Cylindrical Shank Uses H3P Inserts, 6.19″ OAL, Through Coolant
Item #: 14139745
Brand: Iscar
Model #: 3363047
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.7870 |
| Maximum Drill Diameter (Decimal Inch) | 0.8230 |
| Maximum Drill Depth (Decimal Inch) | 2.5340 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 20 |
| Overall Length (Decimal Inch) | 6.1900 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (Decimal Inch) | 2.5340 |
| Body Length (Decimal Inch) | 3.9890 |
| Shank Length (Decimal Inch) | 2.2020 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
