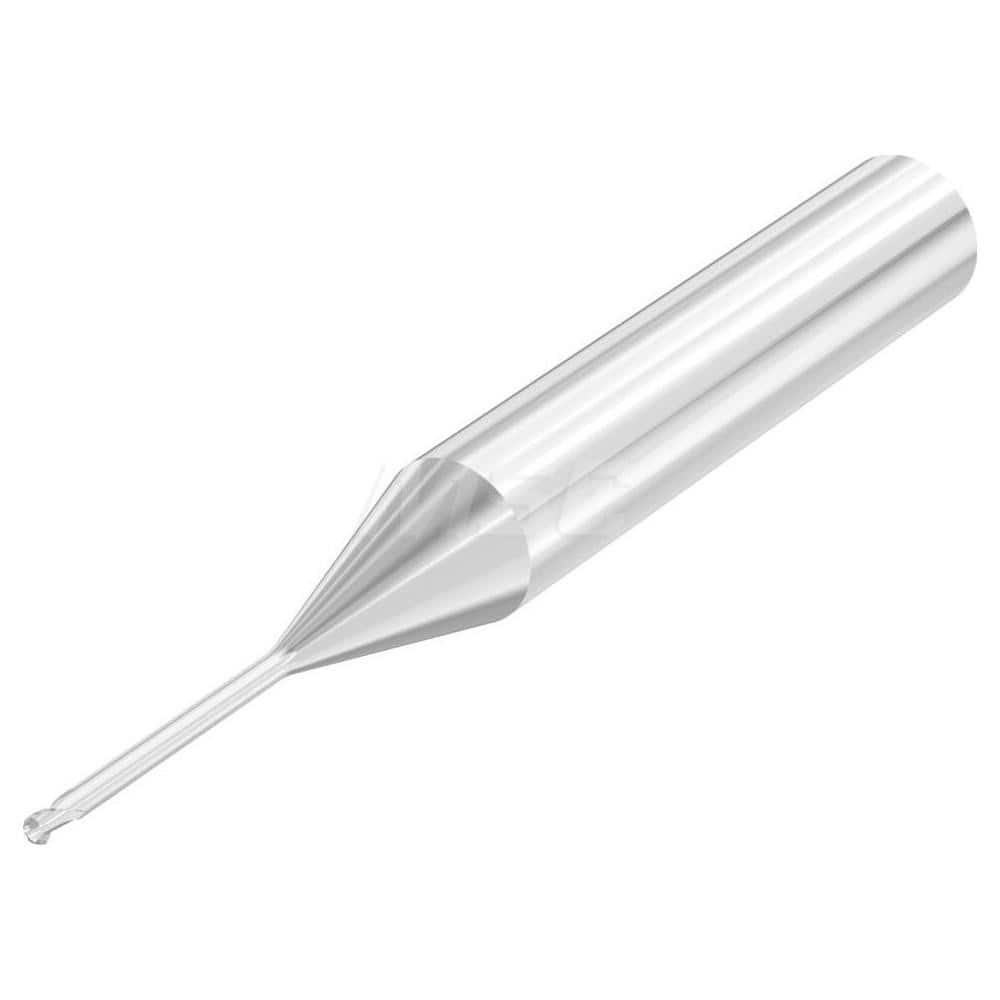

Ball End Mill: 0.0315″ Dia, 0.03″ LOC, 2 Flute, Solid Carbide 50 mm OAL, 30 ° Helix, Diamond Coated, Single End, Series SMB610
Item #: 14088108
Brand: Seco
Model #: 10108781
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0315 |
| Mill Diameter (mm) | 0.80 |
| Length of Cut (mm) | 0.80 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Single |
| Extended Reach | Yes |
| Helix Angle | 30 |
| Undercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Length Type | Extra Long |
| Helix Style | High |
| Material Removal Type | Finishing |
| Neck Diameter (Decimal Inch) | 0.7500 |
| Nose Radius (Decimal Inch) | 0.4000 |
| Neck Length (Decimal Inch) | 9.2000 |
| Reach Length (mm) | 10.00 |
| Overall Length (mm) | 50.00 |
| Mill Diameter Tolerance | -0.02 to 0.00 mm |
| Maximum Helix Angle | 30.00 |
| Minimum Helix Angle | 30.00 |
| Primary Workpiece Material | Zirconia; Graphite |
| Primary Workpiece Material Code | Zr02; GR1 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | SMB610 |
| Flute Type | Spiral |
| TIR Maximum (mm) | 0.01 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | Diamond |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0300 |
| Manufacturers Catalog Number | SMB614008G6B.0Z2 |
 | |
| MSC Part # | 14088108 |
| Mfr Part # | 10108781 |
| Country of OriginCountry of Origin is subject to change | China |
