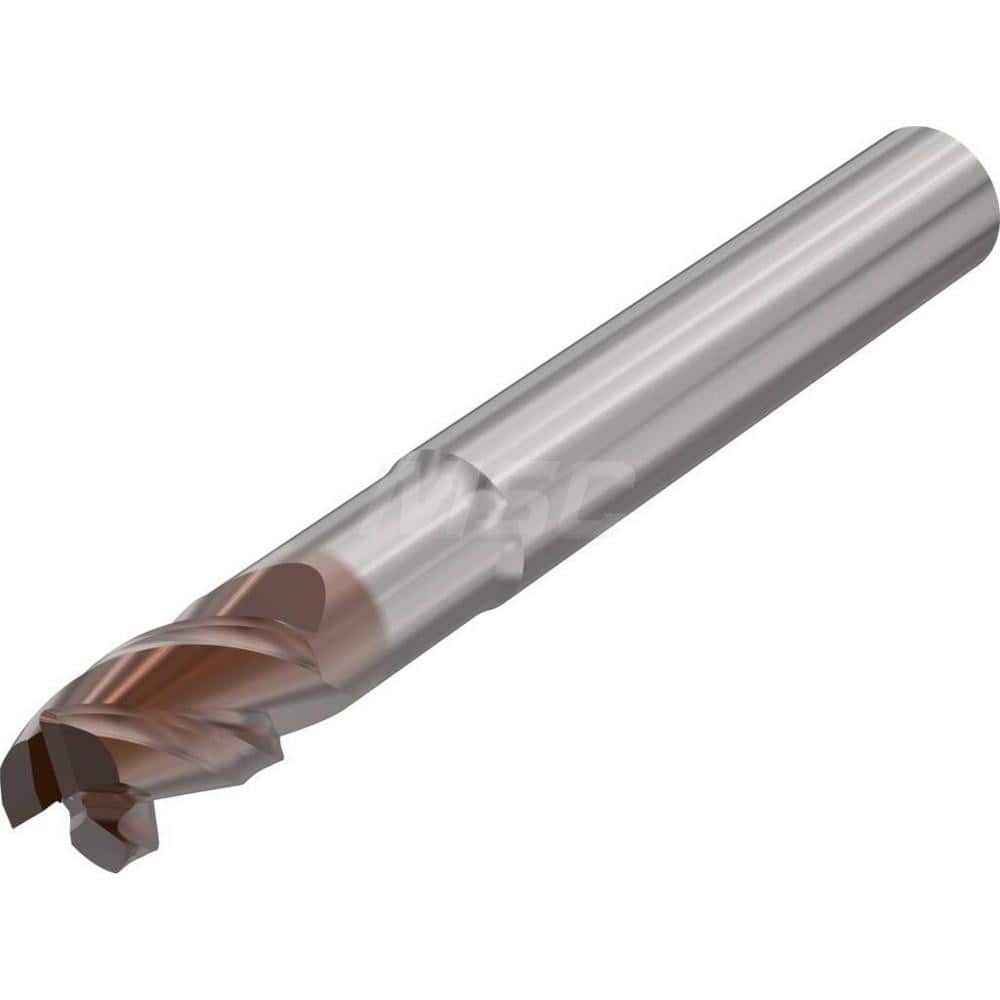

Corner Radius End Mill: 0.3″ Radius, 3 Flutes, Solid Carbide Helix, HXT Coated, Centercutting, Series JHP751
Item #: 14086730
Brand: Seco
Model #: 10105588
Product Specifications
| Mill Diameter (mm) | 6.00 |
| Length of Cut (mm) | 9.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | Yes |
| Length Type | Short |
| Flute Type | Helical |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Neck Diameter (mm) | 5.60 |
| Overall Length (mm) | 57.00 |
| Minimum Helix Angle | 44.00 |
| Maximum Helix Angle | 44.00 |
| Corner Radius Tolerance | -0.02000 to 0.02000 mm |
| Mill Diameter Tolerance | -0.032000 to -0.020000 mm |
| Primary Workpiece Material | Super Alloys & Titanium |
| Primary Workpiece Material Code | S |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | JHP751 |
| TIR Maximum (mm) | 0.01 |
| Coating/Finish | HXT |
