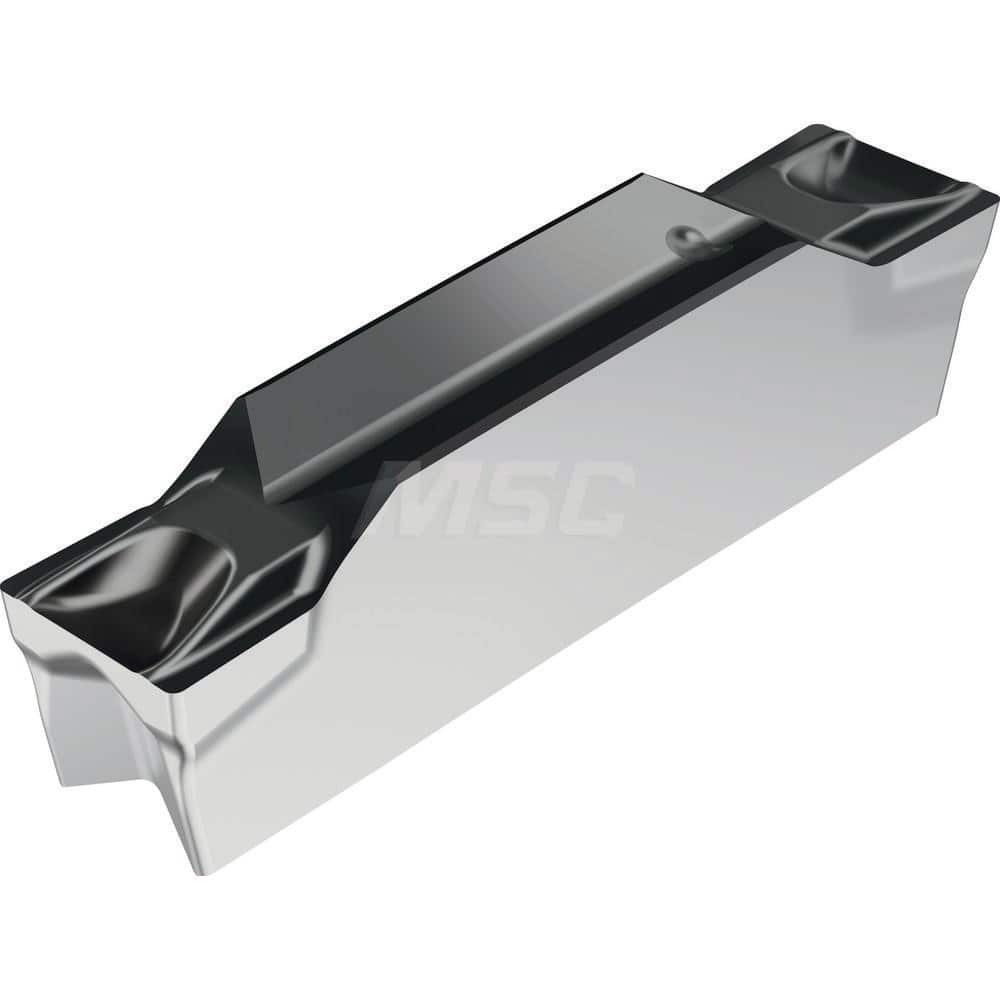

Cut-Off Inserts; Insert Style: DX18; Insert Size Code: 2E200N02; Insert Material: Solid Carbide; Manufacturer Grade: WSM23S; Cutting Width (Decimal Inch): 0.0790; Insert Holding Method: Clamp; Lead Angle Direction: Neutral; Insert Hand: Neutral; Lead Angl
Item #: 13981287
Brand: Walter
Model #: 8035919
Product Specifications
| Insert Style | DX18 |
| Insert Size Code | 2E200N02 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM23S |
| Cutting Width (Decimal Inch) | 0.0790 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.00 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | UF7 |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-off |
| Series | DX18 |
| Coating Process | PVD |
| Overall Length (mm) | 18.00 |
| Overall Length (Decimal Inch) | 18.0000 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | DX18-2E200N02-UF7 WSM23S |
| Coating/Finish | Al; TiAlN; Al2O3 |
