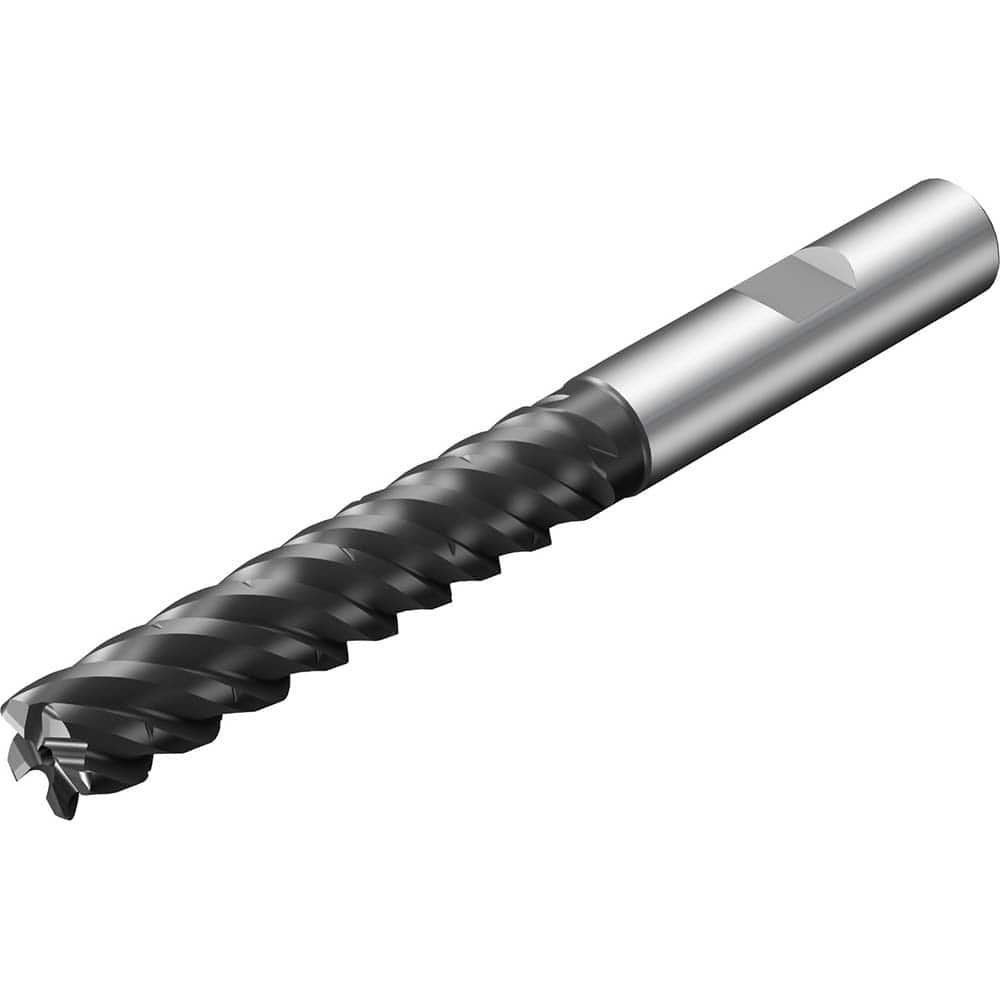

Corner Radius End Mill: 1/4″ Dia, 1-1/4″ LOC, 0.03″ Radius, 5 Flutes, Solid Carbide 2.938″ OAL, 1/4″ Shank Dia, 45 ° Helix, TiAlSiN Coated, Corner Radius End, Series CoroMill Plura
Item #: 13914080
Brand: Sandvik Coromant
Model #: 7963637
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2500 |
| Mill Diameter (Inch) | 1/4 |
| Length of Cut (Inch) | 1-1/4 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Corner Radius (mm) | 0.77 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 45 |
| Shank Type | Weldon Flat |
| Centercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 2.9380 |
| Cutting Direction | Right Hand |
| Series | CoroMill Plura |
| Single Or Double End | Single |
| Coating/Finish | TiAlSiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
