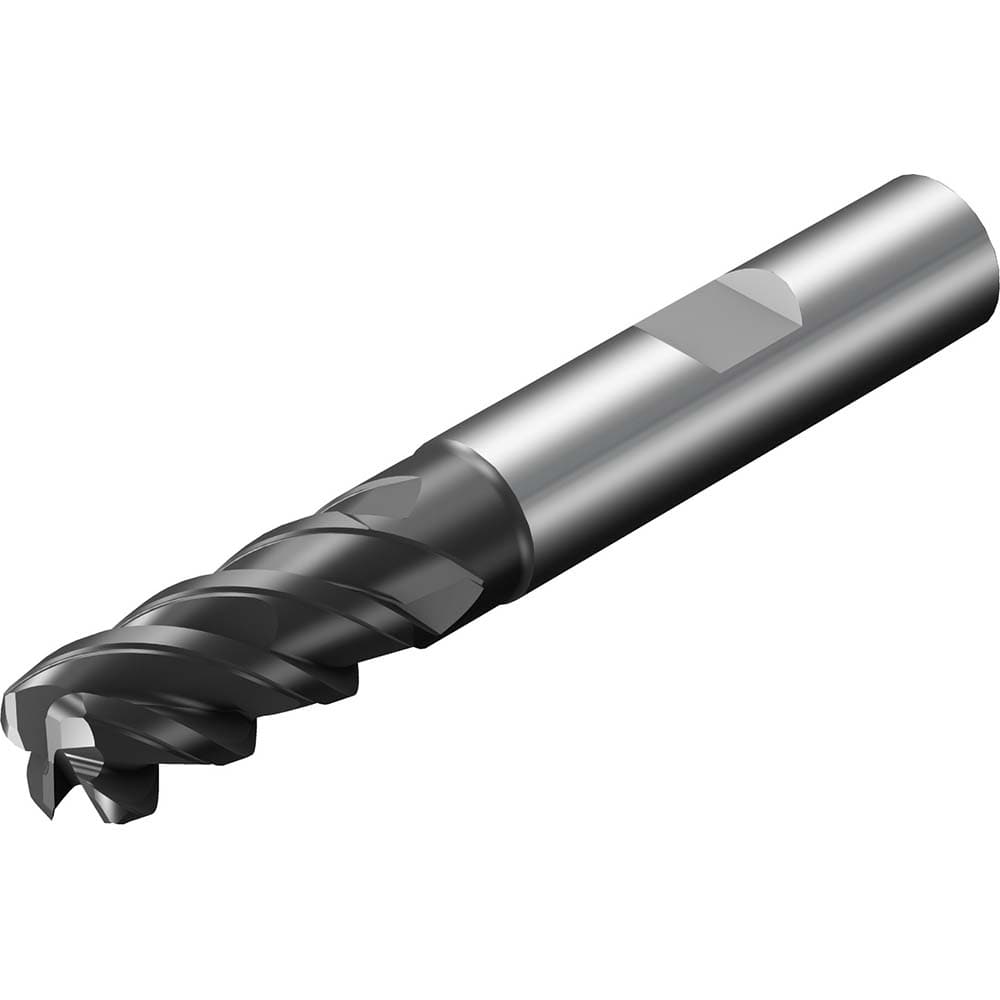

Corner Radius End Mill: 0.472″ Dia, 0.079″ Radius, 4 Flutes, Solid Carbide 48 ° Helix, TiAlN Coated, Corner Radius End, Centercutting, Series CoroMill Plura
Item #: 13913629
Brand: Sandvik Coromant
Model #: 7858258
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4720 |
| Mill Diameter (mm) | 12.00 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Length of Cut (mm) | 26.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 48 |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 12.0000 |
| Overall Length (mm) | 83.00 |
| Cutting Direction | Right Hand |
| Series | CoroMill Plura |
| Single Or Double End | Single |
| Coating/Finish | TiAlN |
