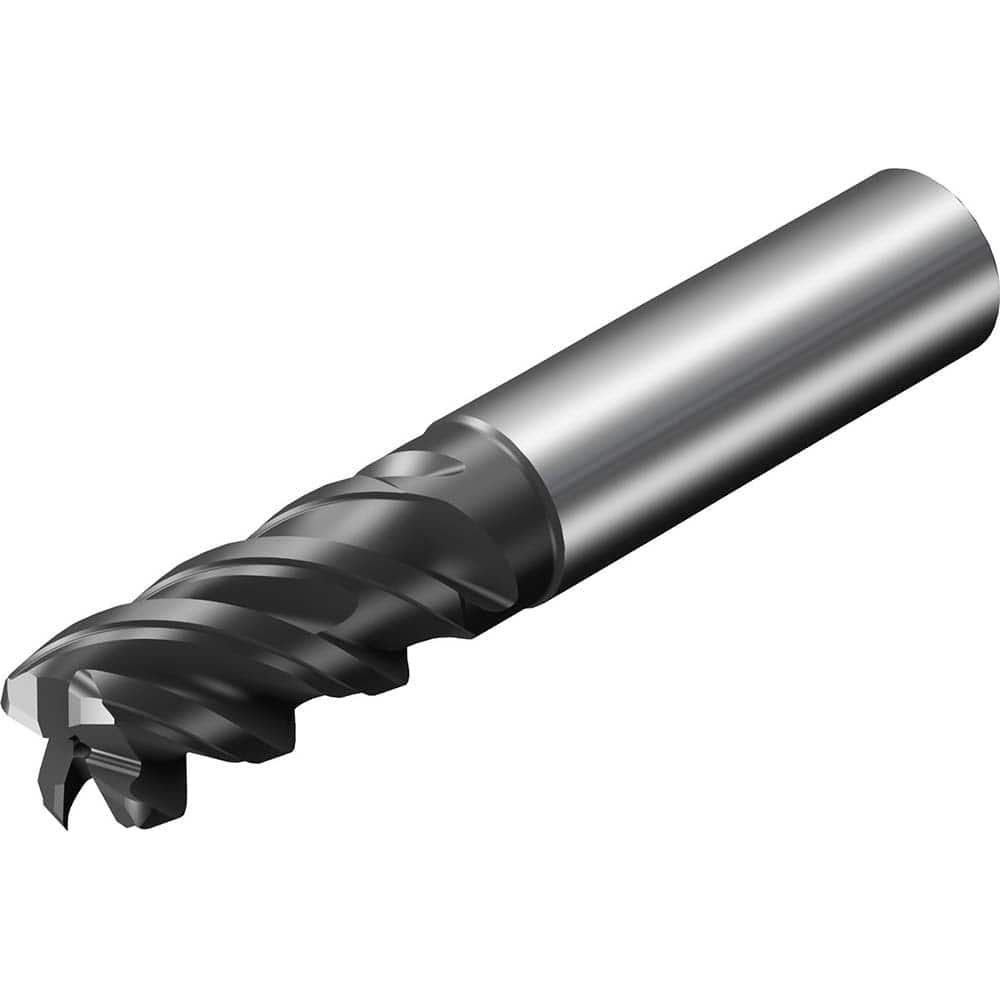

Sandvik Coromant - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 0.375 ; Mill Diameter (Decimal Inch): 0.3750 ; End Type: Corner Radius ; Corner Radius (mm): 0.77 ; Corner Radius (Decimal Inch): 0.03 ; Number of Flutes: 4
Item #: 13913512
Brand: Sandvik Coromant
Model #: 7858309
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 0.375 ; Mill Diameter (Decimal Inch): 0.3750 ; End Type: Corner Radius ; Corner Radius (mm): 0.77 ; Corner Radius (Decimal Inch): 0.03 ; Number of Flutes: 4
| Mill Diameter (Inch) | 0.375 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.77 |
| Corner Radius (Decimal Inch) | 0.03 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Length of Cut (Decimal Inch) | 0.7811 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 3 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 48 |
| Variable Index | No |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | No |
| Shank Type | Weldon |
| Series/List | CoroMill Plura |
