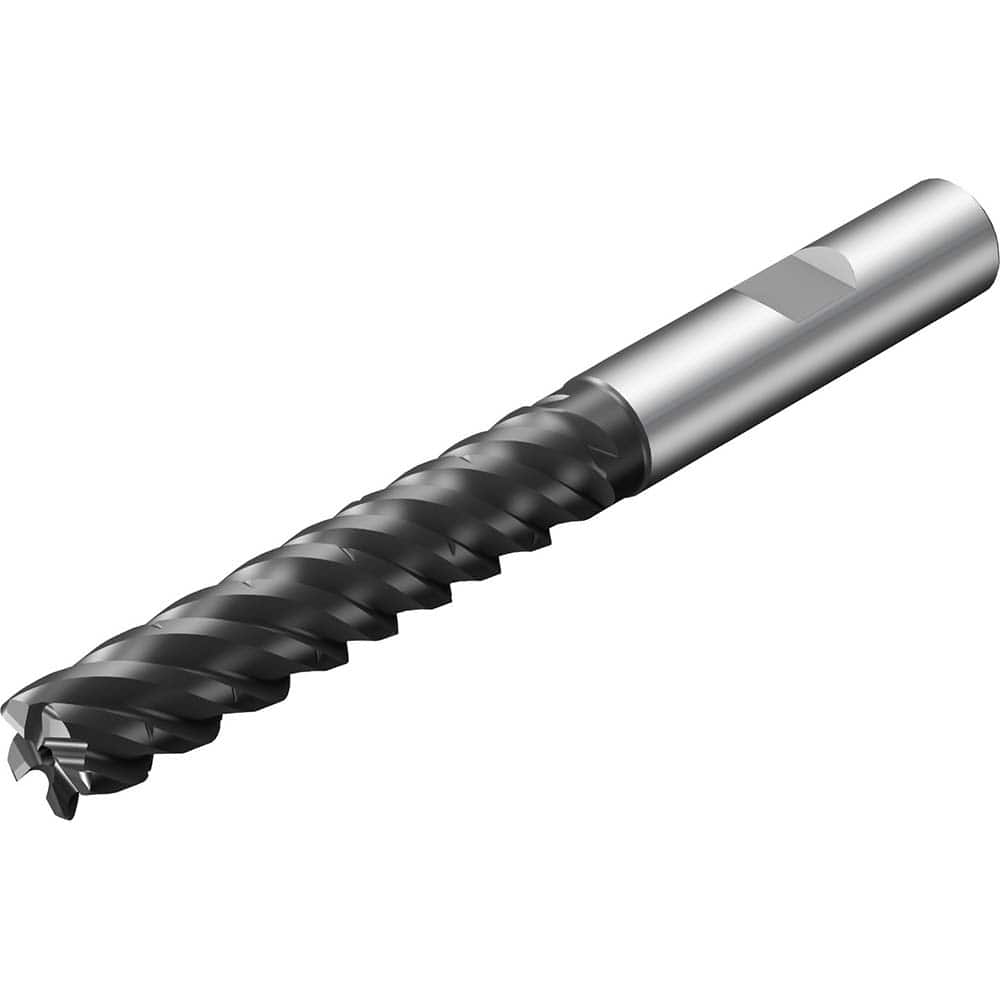

Corner Radius End Mill: 3/8″ Dia, 1-7/8″ LOC, 0.06″ Radius, 5 Flutes, Solid Carbide 3-3/4″ OAL, 3/8″ Shank Dia, 42 ° Helix, TiAlSiN Coated, Corner Radius End, Series CoroMill Plura
Item #: 13913462
Brand: Sandvik Coromant
Model #: 7963640
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Length of Cut (Inch) | 1-7/8 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Corner Radius (mm) | 1.53 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 42 |
| Shank Type | Weldon Flat |
| Centercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 3-3/4 |
| Overall Length (Decimal Inch) | 3.7500 |
| Cutting Direction | Right Hand |
| Series | CoroMill Plura |
| Single Or Double End | Single |
| Coating/Finish | TiAlSiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.8750 |
