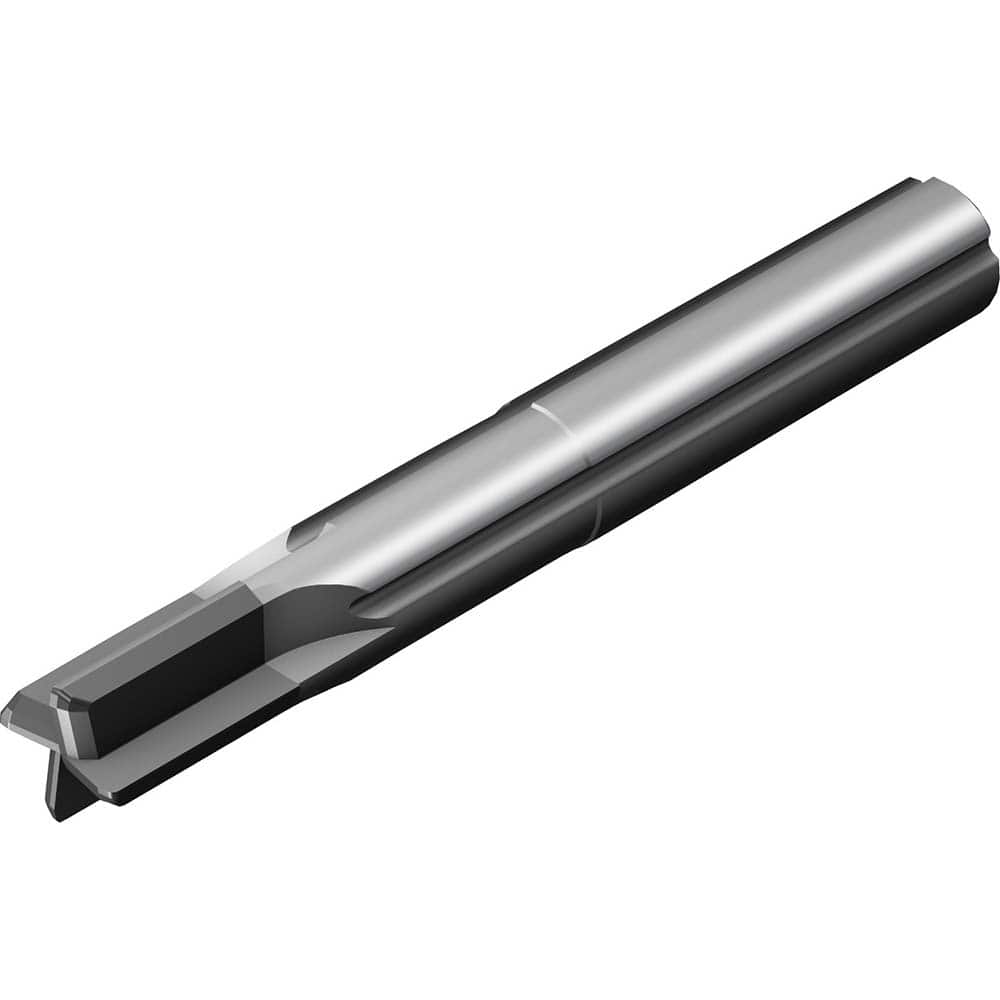

Corner Chamfer End Mill: 0.394″ Dia, 4 Flute, Solid Carbide 80.4 mm OAL, 10 mm Shank Dia, 0 ° Helix, TiAlN Coated
Item #: 13913215
Brand: Sandvik Coromant
Model #: 7990643
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3940 |
| Chamfer Width (mm) | 1.20 |
| Mill Diameter (mm) | 10.00 |
| Chamfer Angle | 10 |
| Length of Cut (mm) | 3.30 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Chamfer |
| Flute Type | Helical |
| Helix Angle | 0 |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 10.00 |
| Overall Length (mm) | 80.40 |
| Cutting Direction | Right Hand |
| Series | CoroMill Plura |
| Single Or Double End | Single |
| Coating/Finish | TiAlN |
