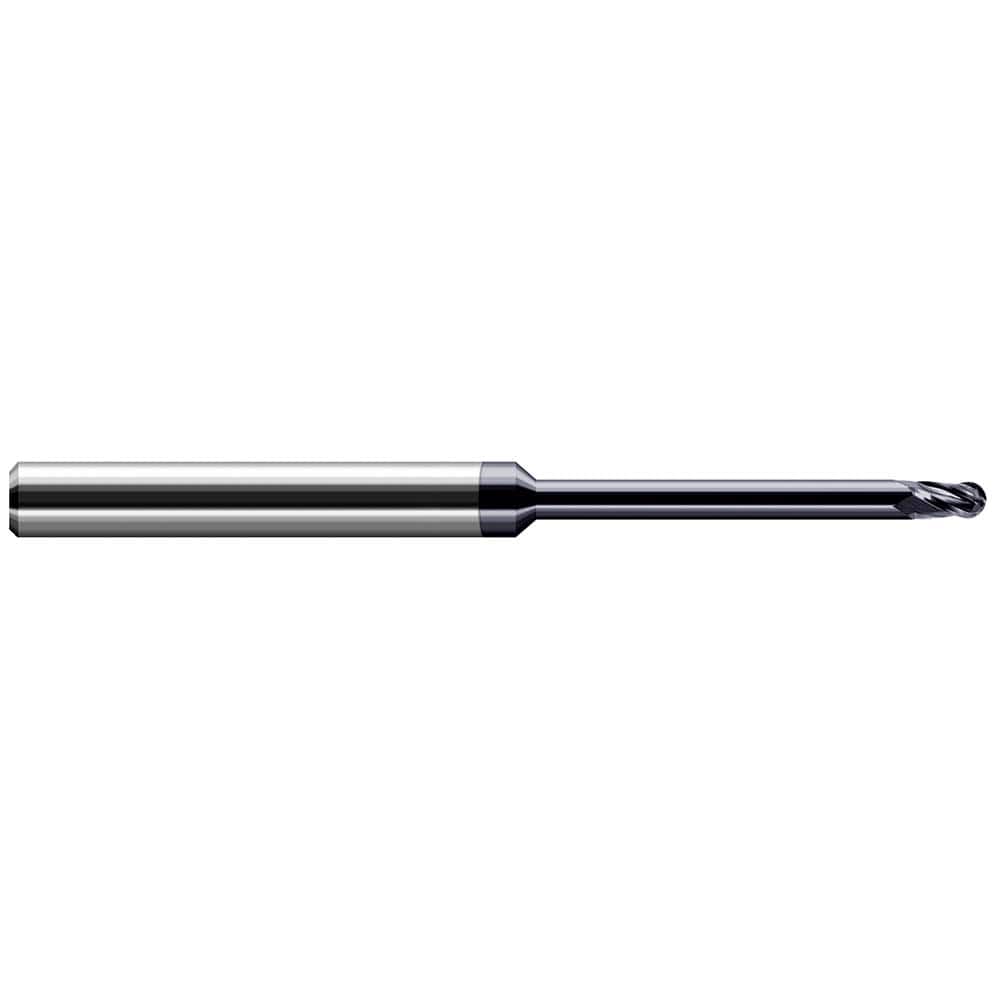

Ball End Mill: 0.0157″ Dia, 0.0236″ LOC, 4 Flute, Solid Carbide 50 mm OAL, 4 mm Shank Dia, 37 ° Helix, AlTiN Coated, Single End
Item #: 13860622
Brand: Harvey Tool
Model #: 988309-C3
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0157 |
| Mill Diameter (mm) | 0.40 |
| Length of Cut (mm) | 0.60 |
| End Mill Material | Solid Carbide |
| Helix Angle | 37 |
| Length Of Cut Range (Decimal Inch) | 0.0000 to 0.0500 |
| Variable Helix | Yes |
| Shank Diameter (mm) | 4.00 |
| Reach Length (mm) | 4.80 |
| Overall Length (mm) | 50.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0236 |
