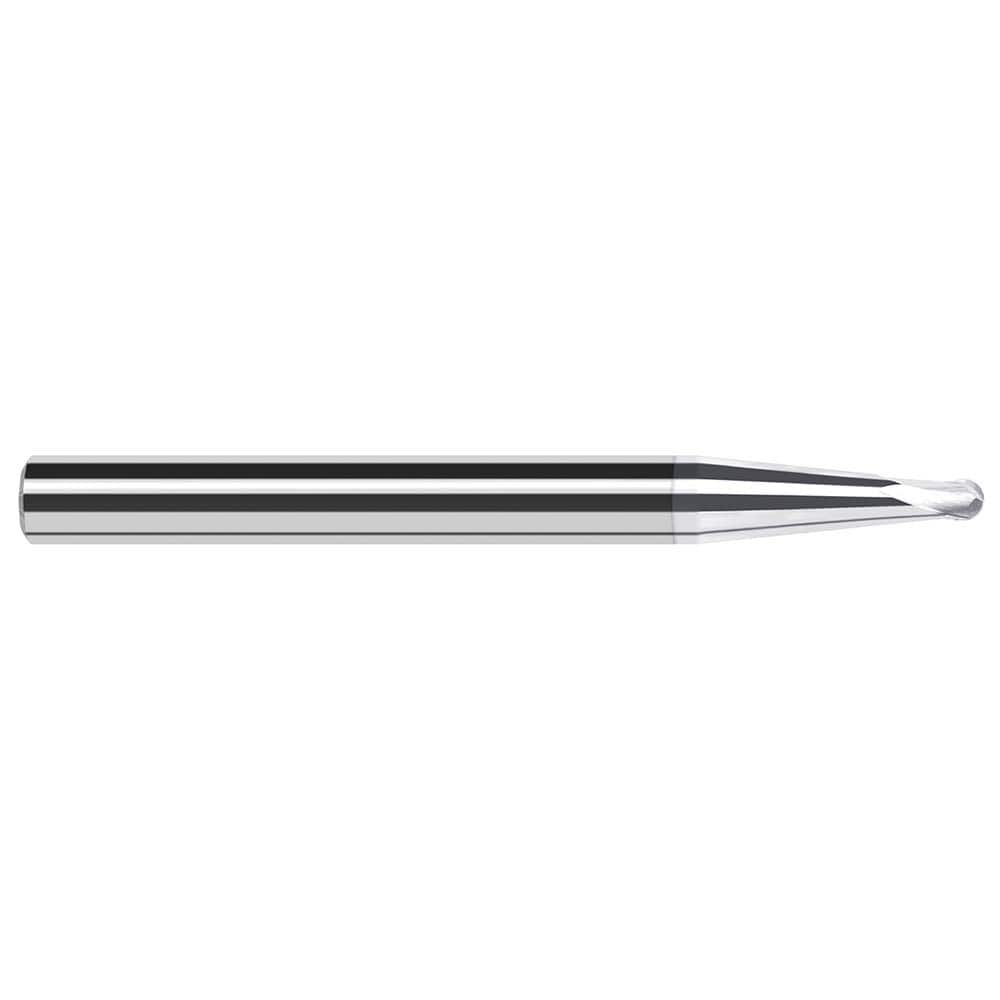

Harvey Tool - Ball End Mills; Mill Diameter (mm): 0.80 ; Mill Diameter (Inch): 1/32 ; Mill Diameter (Decimal Inch): 0.0310 ; Number of Flutes: 2 ; Length of Cut (Decimal Inch): 0.0250 ; Material: Solid Carbide
Item #: 13859970
Brand: Harvey Tool
Model #: 996007-C8
Product Specifications
Ball End Mills; Mill Diameter (mm): 0.80 ; Mill Diameter (Inch): 1/32 ; Mill Diameter (Decimal Inch): 0.0310 ; Number of Flutes: 2 ; Length of Cut (Decimal Inch): 0.0250 ; Material: Solid Carbide
| Mill Diameter (mm) | 0.80 |
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0310 |
| Number of Flutes | 2 |
| Length of Cut (Decimal Inch) | 0.0250 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.00000 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Finish/Coating | TiB2 |
| Single or Double End | Single |
| Helix Angle | 45 |
| Variable Helix | No |
| Helix Style | High |
| Reach Length (Decimal Inch) | 0.9190 |
| Series/List | High Helix End Mills for Aluminum Alloys - Ball - Tapered Reach (Mold Cutters) |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
