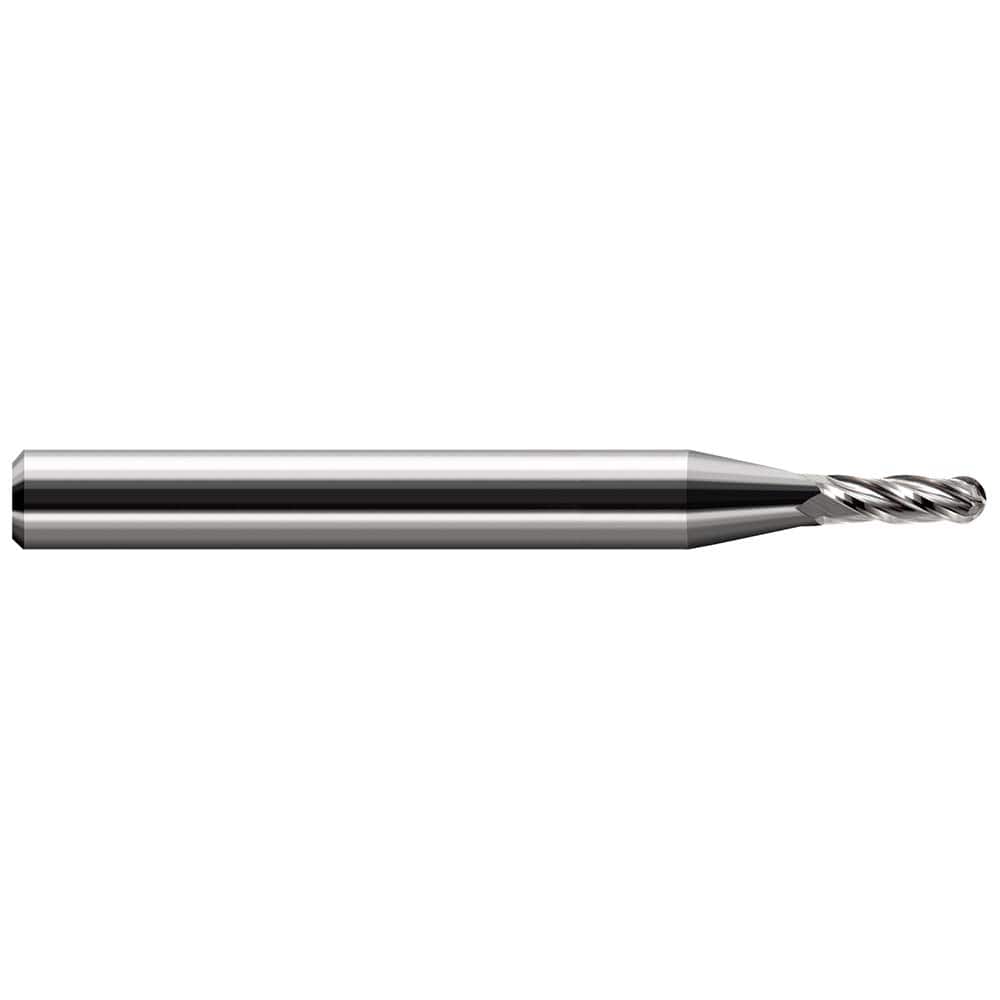

Harvey Tool - Ball End Mills; Mill Diameter (Decimal Inch): 0.0220 ; Number of Flutes: 4 ; Length of Cut (Decimal Inch): 0.0660 ; Material: Solid Carbide ; Overall Length (Inch): 1-1/2 ; Overall Length (Decimal Inch): 1.50000
Item #: 13858964
Brand: Harvey Tool
Model #: 74322
Product Specifications
Ball End Mills; Mill Diameter (Decimal Inch): 0.0220 ; Number of Flutes: 4 ; Length of Cut (Decimal Inch): 0.0660 ; Material: Solid Carbide ; Overall Length (Inch): 1-1/2 ; Overall Length (Decimal Inch): 1.50000
| Mill Diameter (Decimal Inch) | 0.0220 |
| Number of Flutes | 4 |
| Length of Cut (Decimal Inch) | 0.0660 |
| Material | Solid Carbide |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.50000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Finish/Coating | Uncoated |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Helix | No |
| Series/List | Miniature End Mills - Ball - Stub & Standard |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
