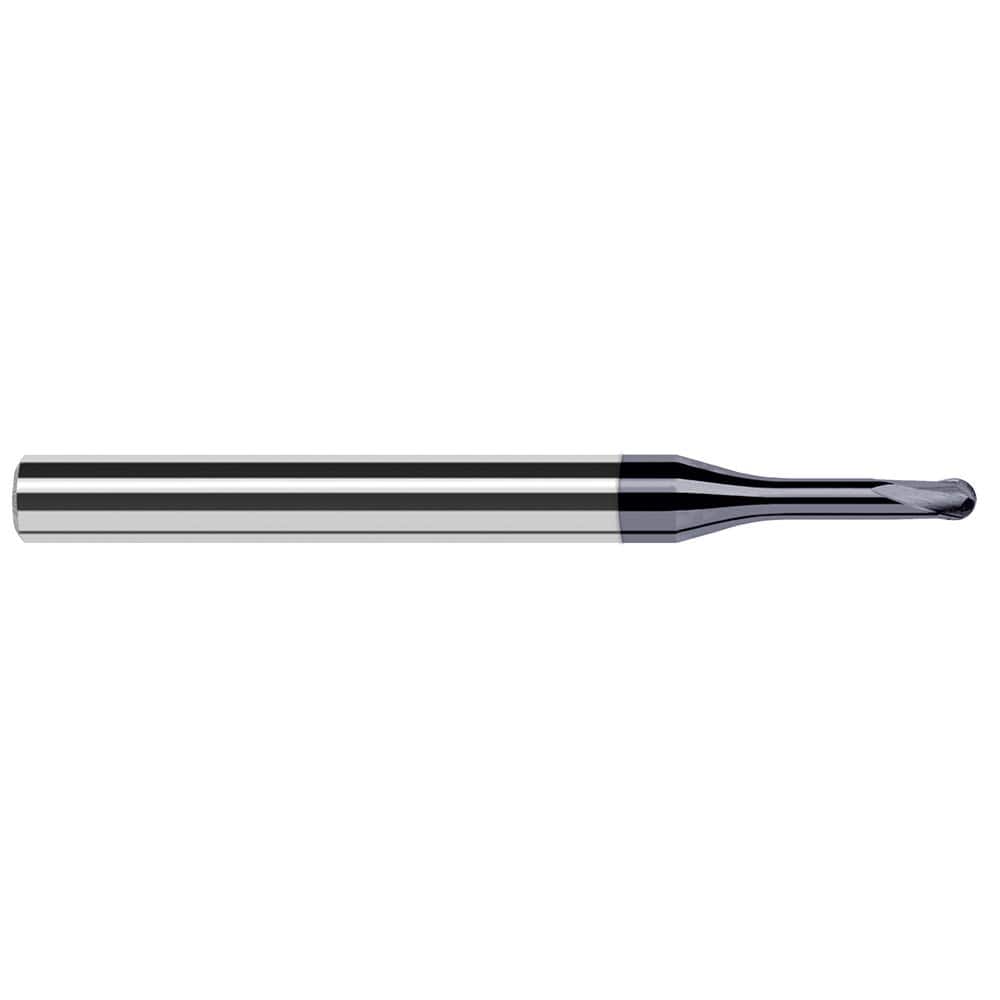

Ball End Mill: 0.118″ Dia, 0.094″ LOC, 2 Flute, Solid Carbide 2-1/2″ OAL, 1/4″ Shank Dia, 20 ° Helix, AlTiN Coated, Single End
Item #: 13857263
Brand: Harvey Tool
Model #: 37905-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1180 |
| Mill Diameter (mm) | 3.00 |
| Length of Cut (mm) | 2.40 |
| End Mill Material | Solid Carbide |
| Helix Angle | 20 |
| Length Of Cut Range (Decimal Inch) | 0.0500 to 0.1000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Reach Length (mm) | 4.50 |
| Reach Length (Decimal Inch) | 0.1770 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0940 |
