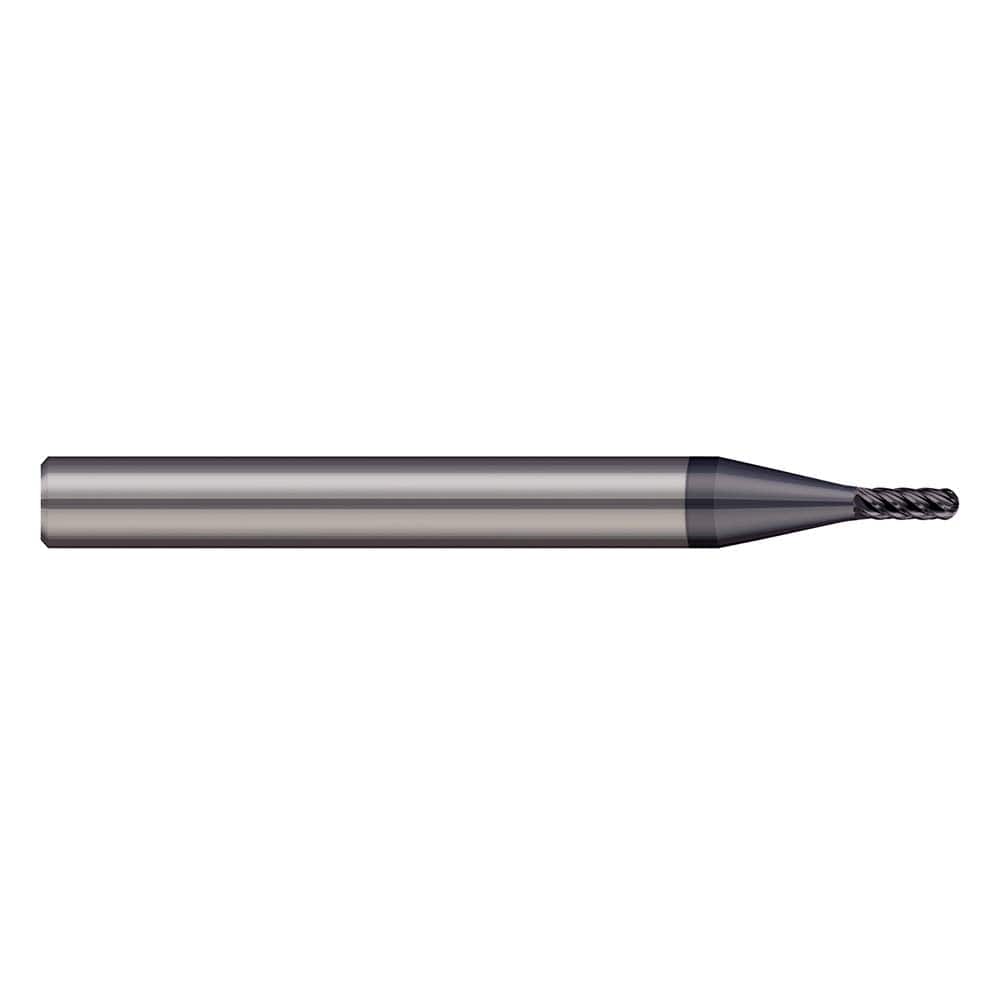

Harvey Tool - Ball End Mills; Mill Diameter (Inch): 3/32 ; Mill Diameter (Decimal Inch): 0.0930 ; Number of Flutes: 6 ; Length of Cut (Decimal Inch): 0.2790 ; Material: Solid Carbide ; Overall Length (Inch): 2-1/2
Item #: 13856463
Brand: Harvey Tool
Model #: 843493-C6
Product Specifications
Ball End Mills; Mill Diameter (Inch): 3/32 ; Mill Diameter (Decimal Inch): 0.0930 ; Number of Flutes: 6 ; Length of Cut (Decimal Inch): 0.2790 ; Material: Solid Carbide ; Overall Length (Inch): 2-1/2
| Mill Diameter (Inch) | 3/32 |
| Mill Diameter (Decimal Inch) | 0.0930 |
| Number of Flutes | 6 |
| Length of Cut (Decimal Inch) | 0.2790 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Finish/Coating | AlTiN Nano |
| Single or Double End | Single |
| Helix Angle | 36 |
| Variable Helix | Yes |
| Series/List | End Mills for Hardened Steels - Ball - For Steels Up to 55 Rc |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
