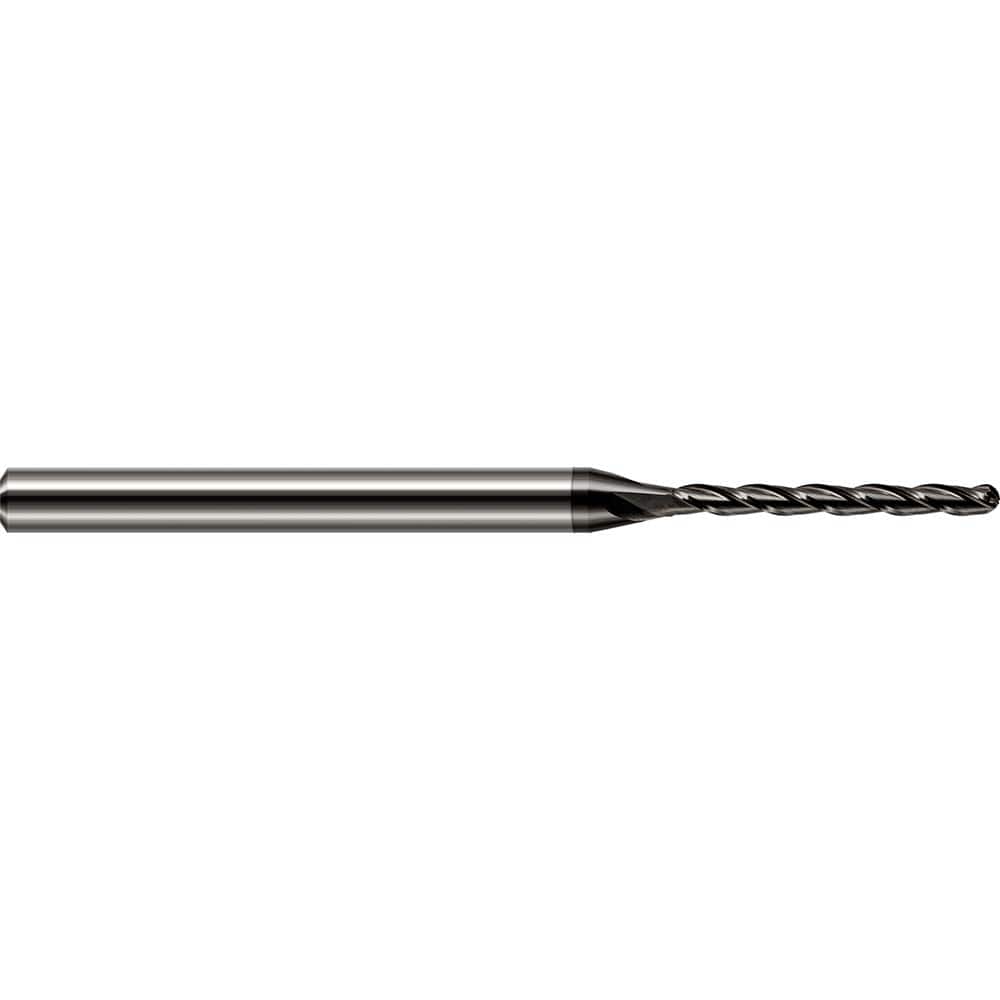

Ball End Mill: 0.093″ Dia, 1.4″ LOC, 3 Flute, Solid Carbide 3″ OAL, 1/8″ Shank Dia, 30 ° Helix, Amorphous Diamond Coated, Single End
Item #: 13856448
Brand: Harvey Tool
Model #: 36093-C4
Product Specifications
| Mill Diameter (Inch) | 3/32 |
| Mill Diameter (Decimal Inch) | 0.0930 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Length Of Cut Range (Decimal Inch) | 1.0000 to 1.5000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 3 |
| Coating/Finish | Amorphous Diamond |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.4000 |
