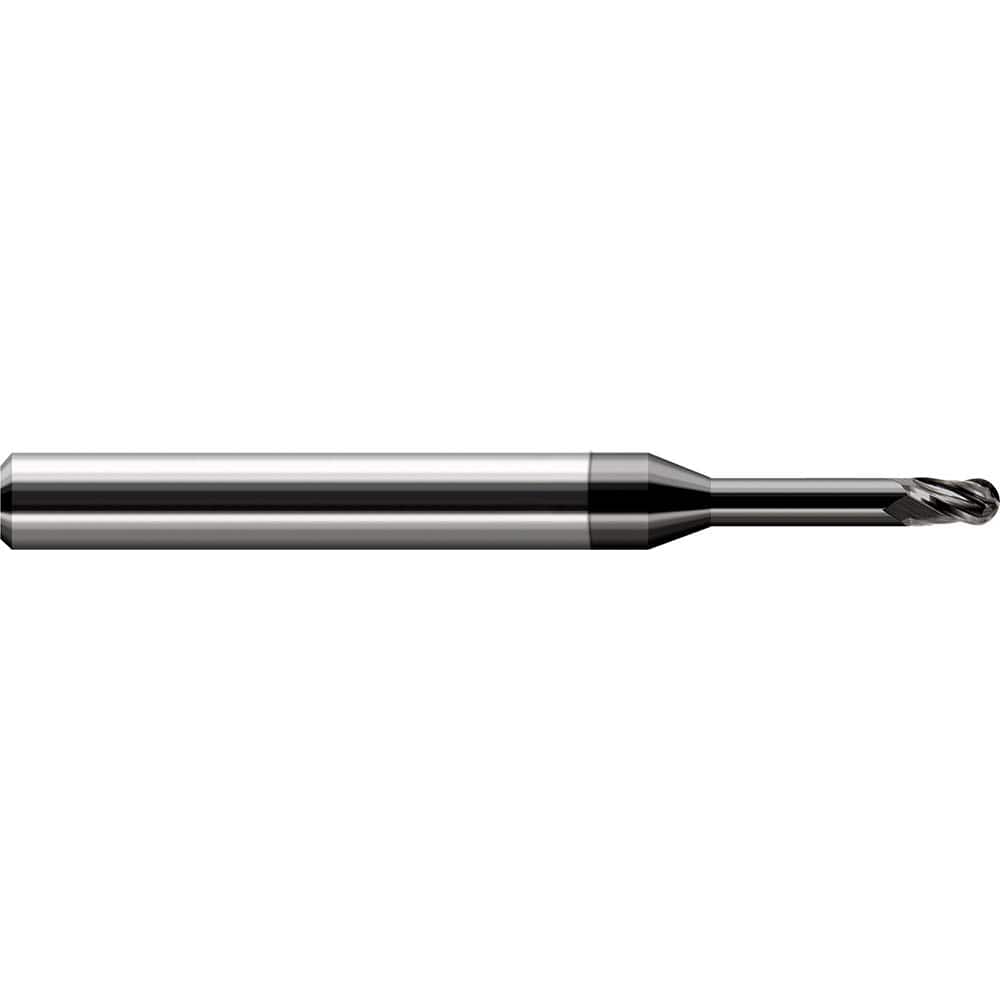

Harvey Tool - Ball End Mills; Mill Diameter (Inch): 1/8 ; Mill Diameter (Decimal Inch): 0.1250 ; Number of Flutes: 3 ; Length of Cut (Inch): 3/16 ; Length of Cut (Decimal Inch): 0.1870 ; Material: Solid Carbide
Item #: 13854633
Brand: Harvey Tool
Model #: 860708-C4
Product Specifications
Ball End Mills; Mill Diameter (Inch): 1/8 ; Mill Diameter (Decimal Inch): 0.1250 ; Number of Flutes: 3 ; Length of Cut (Inch): 3/16 ; Length of Cut (Decimal Inch): 0.1870 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 3/16 |
| Length of Cut (Decimal Inch) | 0.1870 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Finish/Coating | Amorphous Diamond |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Helix | No |
| Reach Length (Inch) | 3/4 |
| Reach Length (Decimal Inch) | 0.7500 |
| Series/List | Miniature End Mills - Ball - Long Reach, Stub Flute |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
