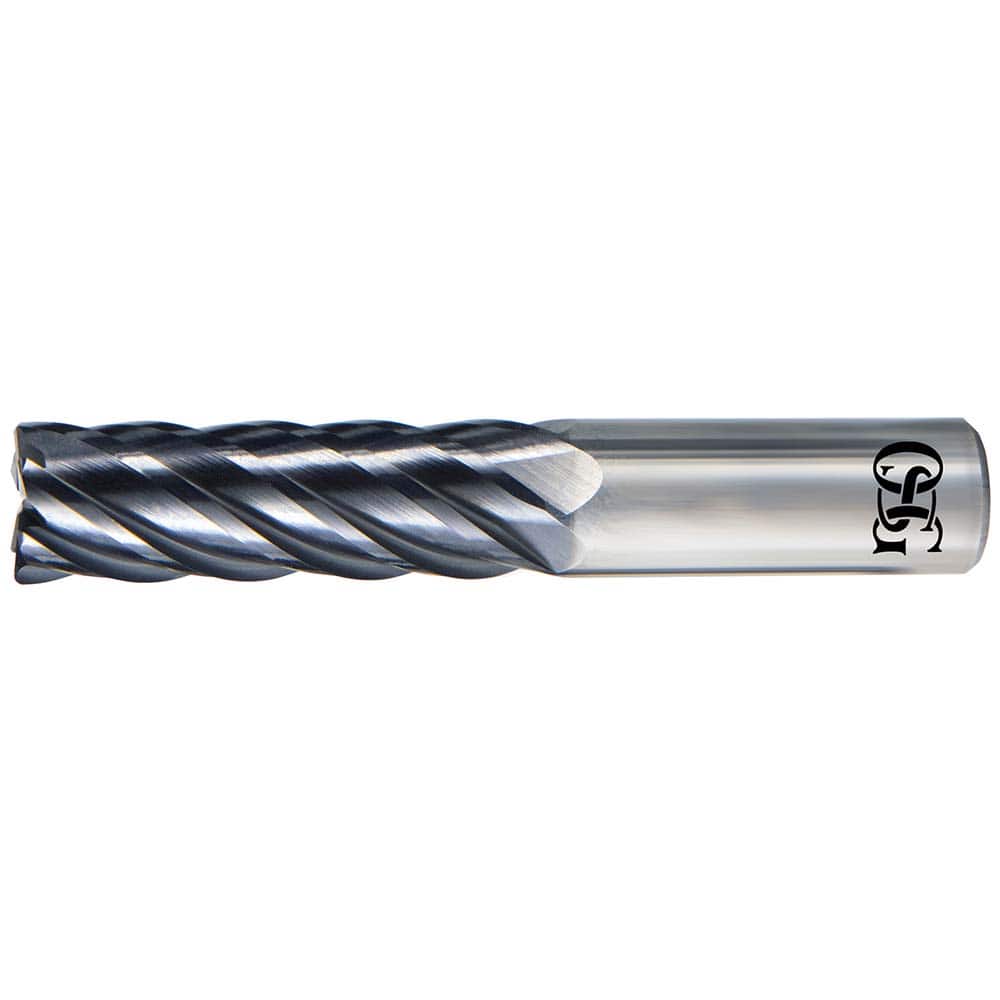

Square End Mill: 5/16'' Dia, 5/8'' LOC, 5/16'' Shank Dia, 2-1/2'' OAL, 6 Flutes, Solid Carbide Single End, EXO Finish, Helical Flute, 37 ° Helix, RH Cut, RH Flute, Series VGM6
Item #: 13852231
Brand: OSG
Model #: VGM6-0029
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 5/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/16 |
| Finish/Coating | EXO |
| Overall Length (Inch) | 2-1/2 |
| Helix Angle | 37 |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.6000 - 0.7000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.6250 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Length Type | Stub |
| Series | VGM6 |
