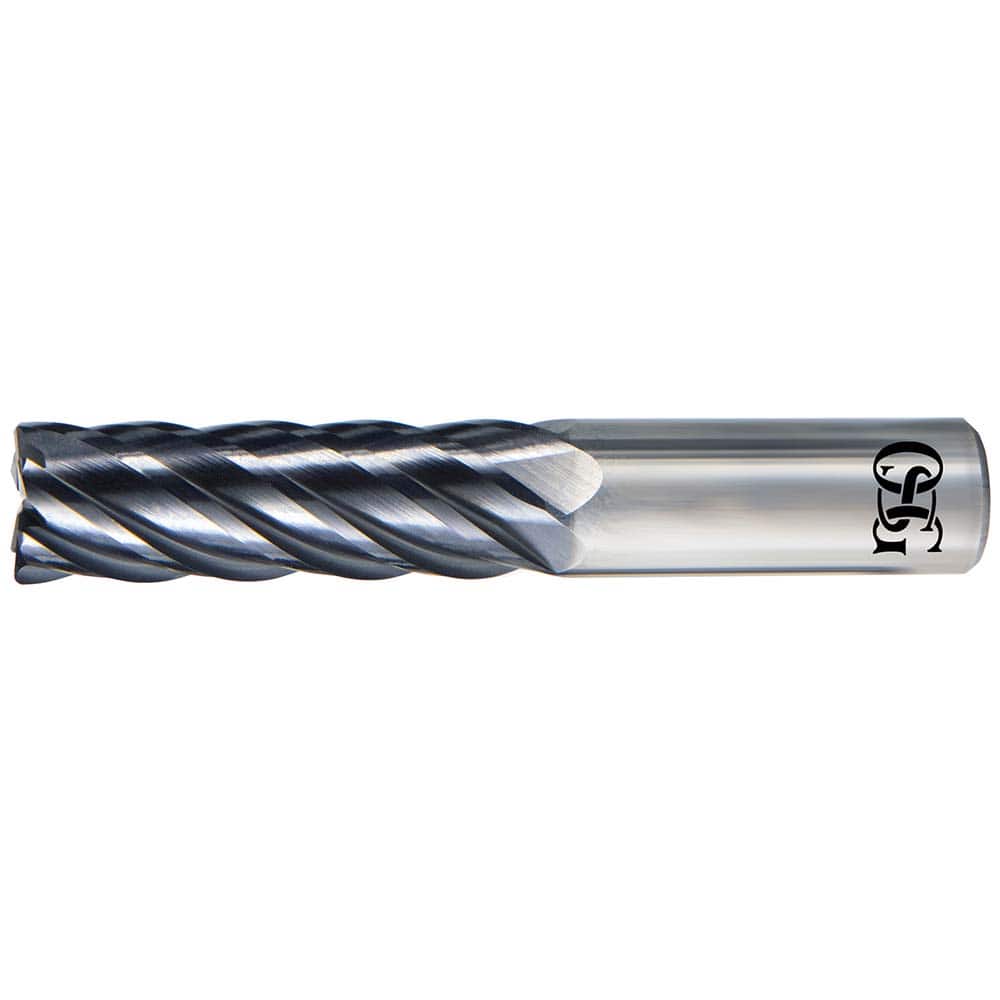

Corner Radius End Mill: 3/4″ Dia, 1-1/8″ LOC, 0.09″ Radius, 6 Flutes, Solid Carbide 4″ OAL, 3/4″ Shank Dia, 37 ° Helix, EXO Coated, Corner Radius End, Series VGM6
Item #: 13851761
Brand: OSG
Model #: VGM6-0138
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 1-1/8 |
| Corner Radius (Decimal Inch) | 0.0900 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Stub |
| Flute Type | Helical |
| Helix Angle | 37 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | VGM6 |
| Proprietary Coating Designation | EXO |
| Single Or Double End | Single |
| Coating/Finish | EXO |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1250 |
