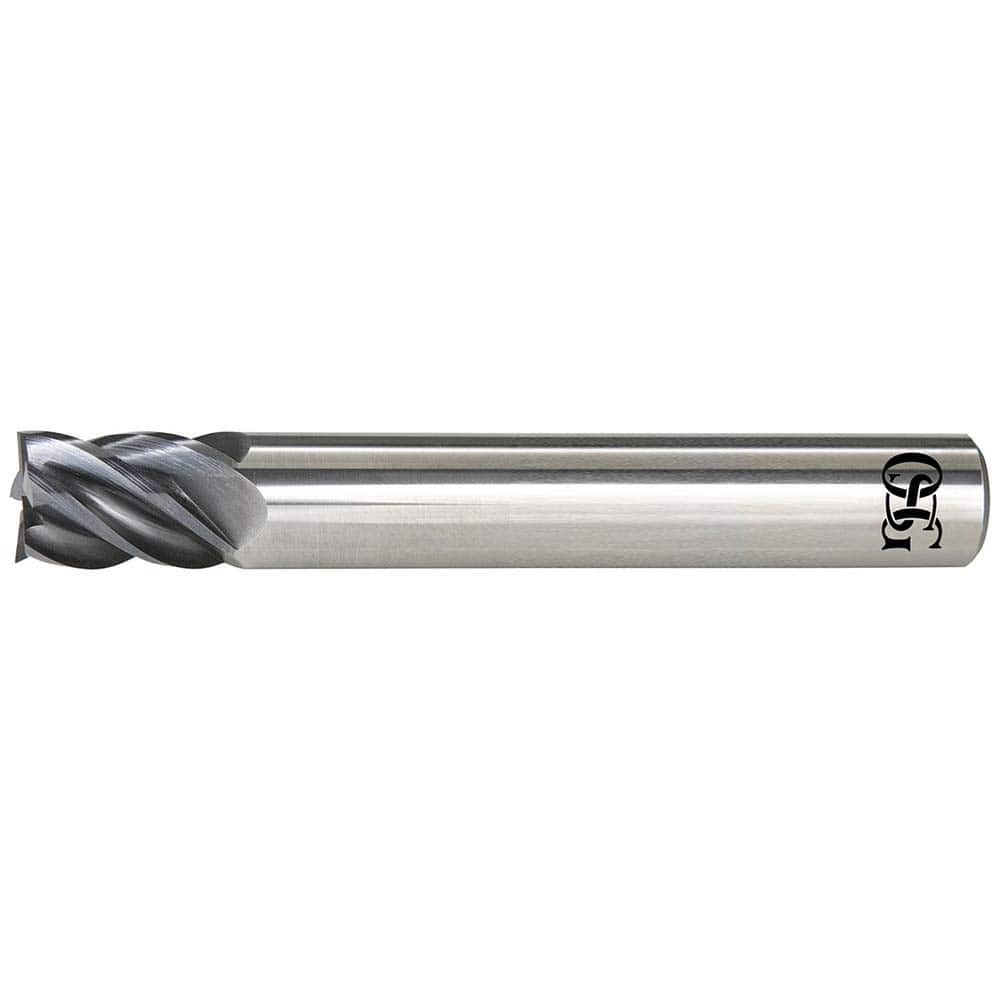

Square End Mill: 1/4'' Dia, 5/16'' LOC, 1/4'' Shank Dia, 4'' OAL, 5 Flutes, Solid Carbide Single End, EXO Finish, Helical Flute, 40 ° Helix, Centercutting, RH Cut, RH Flute, Series VGM5-LN
Item #: 13851589
Brand: OSG
Model #: VGM5-1057
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 5/16 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Finish/Coating | EXO |
| Overall Length (Inch) | 4 |
| Helix Angle | 40 |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | Yes |
| Length Of Cut Range (Decimal Inch) | 0.3000 - 0.5000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.3125 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Length Type | Extra Long |
| Neck Length (Decimal Inch) | 2.5000 |
| Neck Diameter (Decimal Inch) | 0.2370 |
| Series | VGM5-LN |
