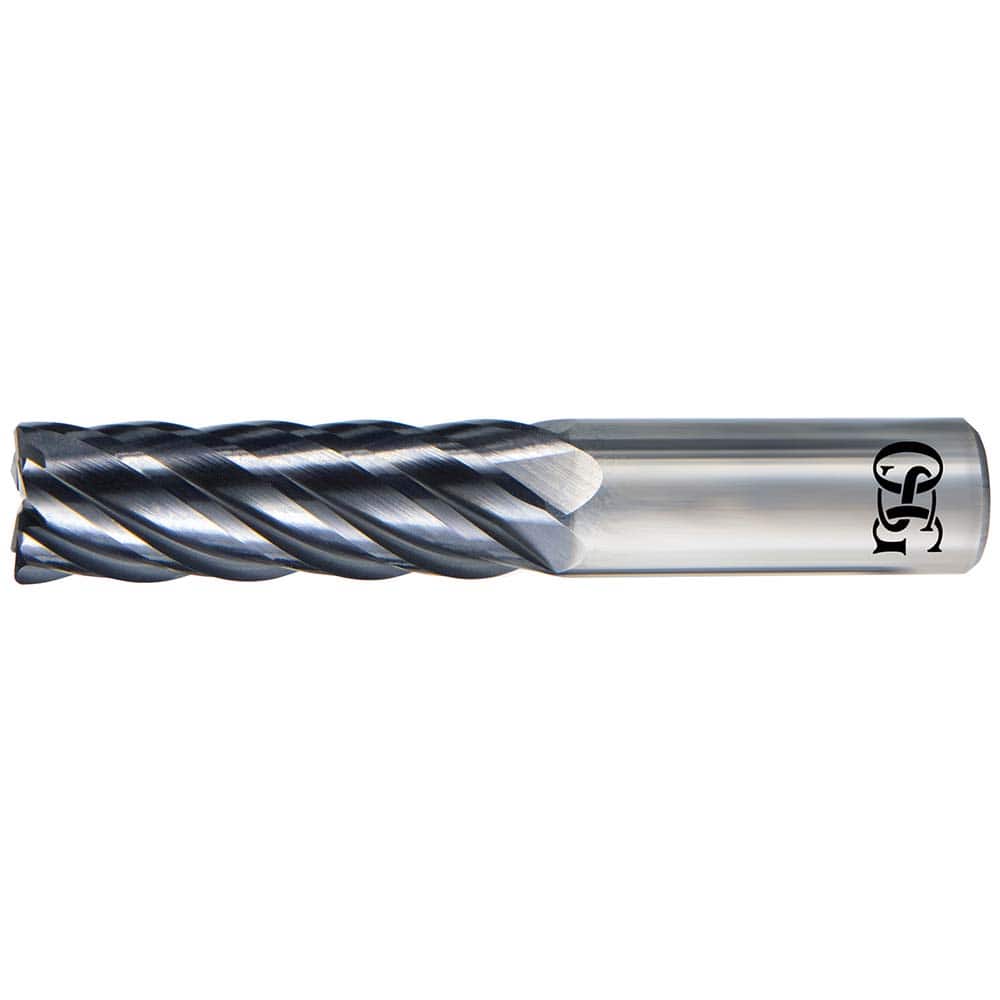

Square End Mill: 1/4'' Dia, 1-1/2'' LOC, 1/4'' Shank Dia, 3'' OAL, 6 Flutes, Solid Carbide Single End, EXO Finish, Helical Flute, 37 ° Helix, RH Cut, RH Flute, Series VGM6
Item #: 13850961
Brand: OSG
Model #: VGM6-0021
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 1-1/2 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Finish/Coating | EXO |
| Overall Length (Inch) | 3 |
| Helix Angle | 37 |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.5000 - 2.0000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 1.5000 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Length Type | Long |
| Series | VGM6 |
