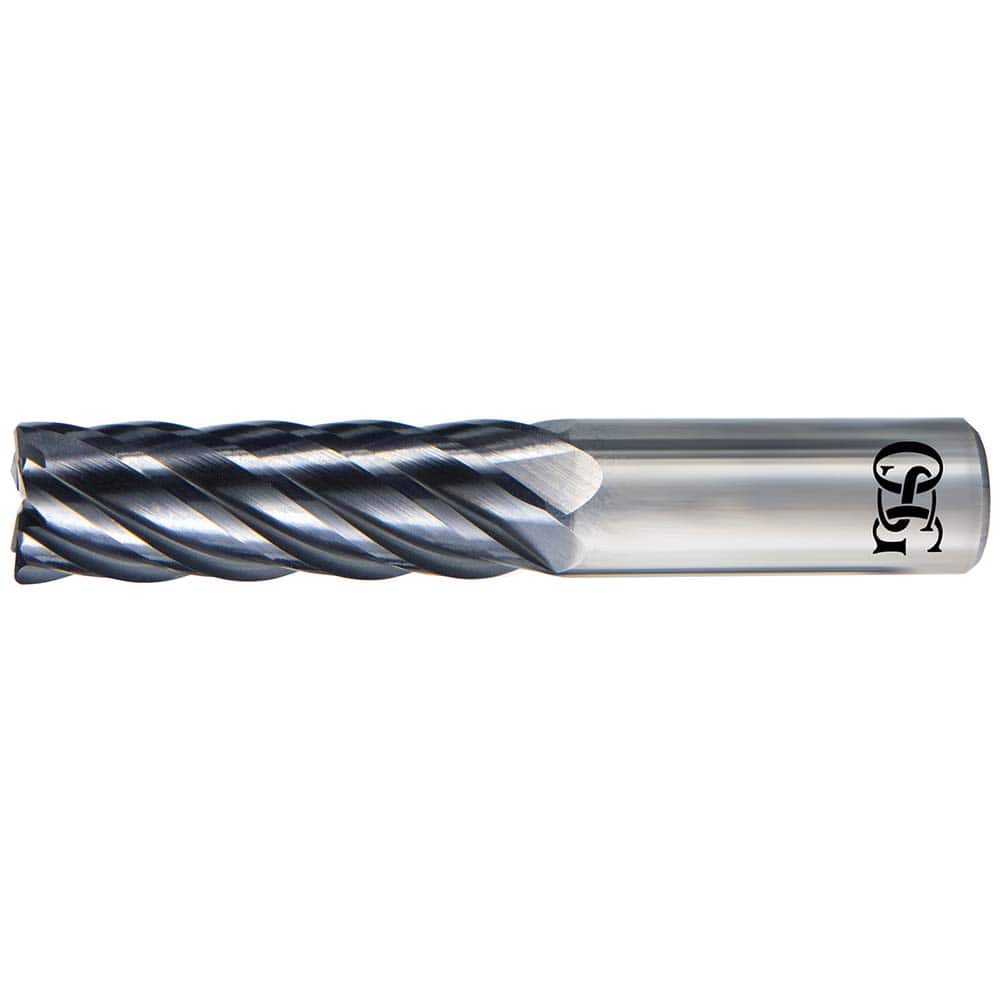

OSG - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (Inch): 0.09 ; Number of Flutes: 6 ; Material: Carbide
Item #: 13847173
Brand: OSG
Model #: VGM6-0109
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (Inch): 0.09 ; Number of Flutes: 6 ; Material: Carbide
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 0.09 |
| Number of Flutes | 6 |
| Material | Carbide |
| Finish/Coating | EXO |
| Length of Cut (Inch) | 1-9/16 |
| Length of Cut (Decimal Inch) | 1.5625 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 3-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 37 |
| Single or Double End | Single |
| Length Type | Regular |
| Centercutting | Non-Center Cutting |
| Flute Direction | Right |
| Extended Reach | NonExtendedReach |
| Shank Type | Round |
| Series/List | VGM6 |
