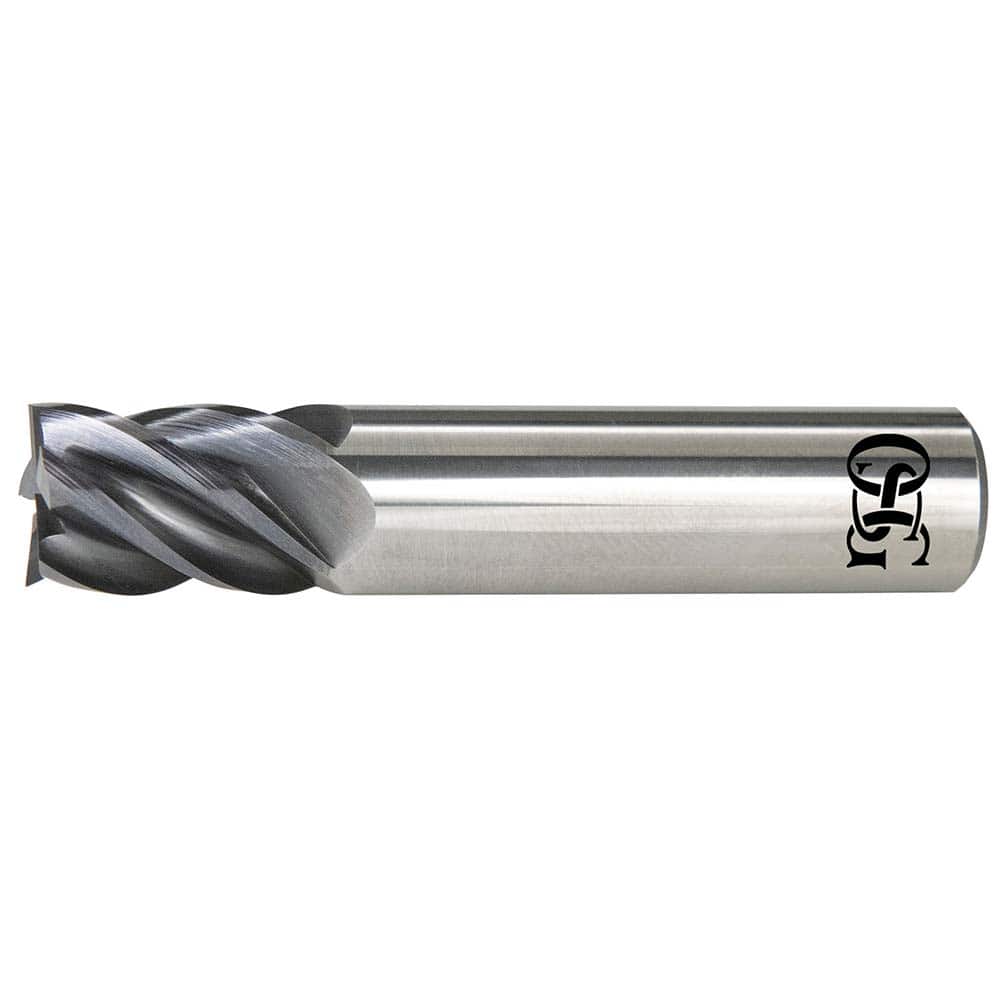

Corner Radius End Mill: 0.1563″ Dia, 15/64″ LOC, 0.01″ Radius, 5 Flutes, Solid Carbide 2″ OAL, 5/32″ Shank Dia, 40 ° Helix, EXO Coated, Corner Radius End, Series VGM5
Item #: 13846233
Brand: OSG
Model #: VGM5-0020
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1563 |
| Length of Cut (Inch) | 15/64 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Stub |
| Flute Type | Helical |
| Helix Angle | 40 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 5/32 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | VGM5 |
| Proprietary Coating Designation | EXO |
| Single Or Double End | Single |
| Coating/Finish | EXO |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2344 |
