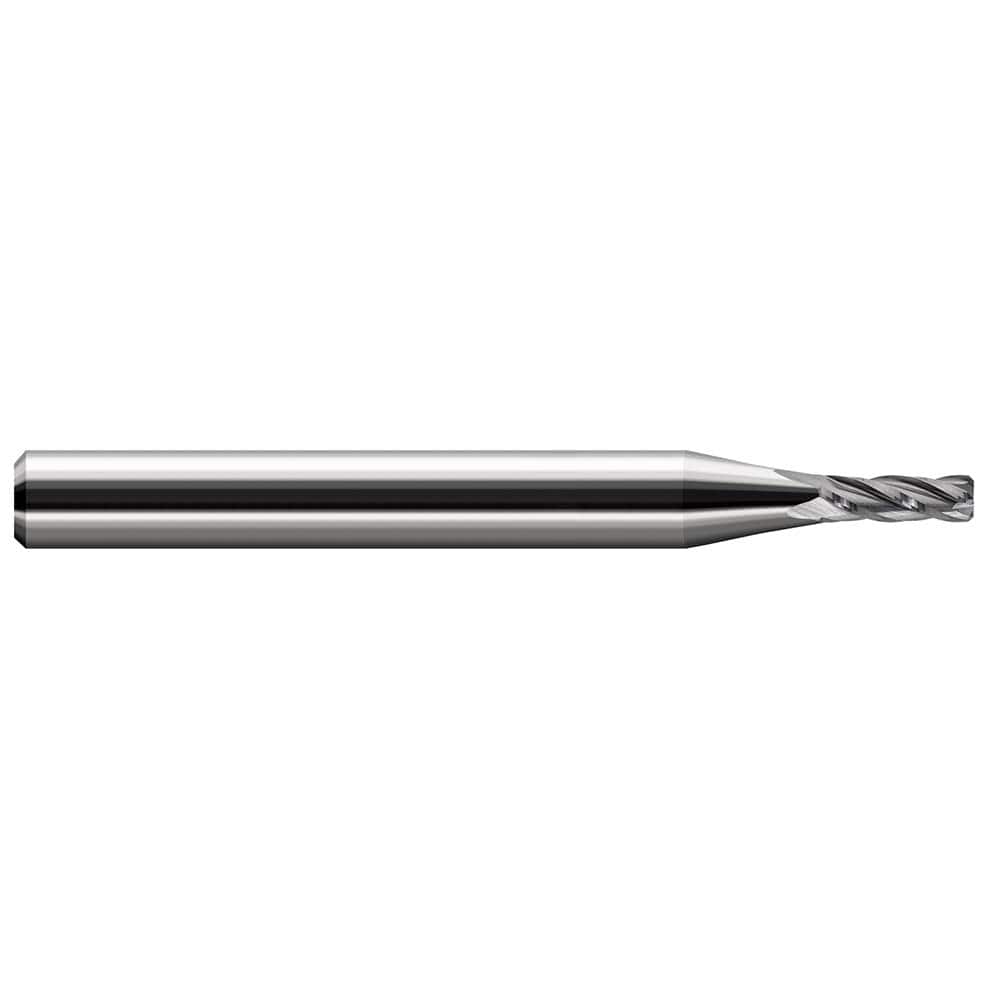

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/4 ; Mill Diameter (Decimal Inch): 0.2500 ; End Type: Corner Chamfer ; Chamfer Width (Decimal Inch): 0.0100 ; Number of Flutes: 4 ; Material: Solid Carbide
Item #: 13843362
Brand: Harvey Tool
Model #: 805016
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/4 ; Mill Diameter (Decimal Inch): 0.2500 ; End Type: Corner Chamfer ; Chamfer Width (Decimal Inch): 0.0100 ; Number of Flutes: 4 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| End Type | Corner Chamfer |
| Chamfer Width (Decimal Inch) | 0.0100 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (Inch) | 3/4 |
| Length of Cut (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Chamfer Angle | 45.000 |
| Single or Double End | Single |
| Centercutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Series/List | Miniature End Mills - Corner Chamfer - Standard |
