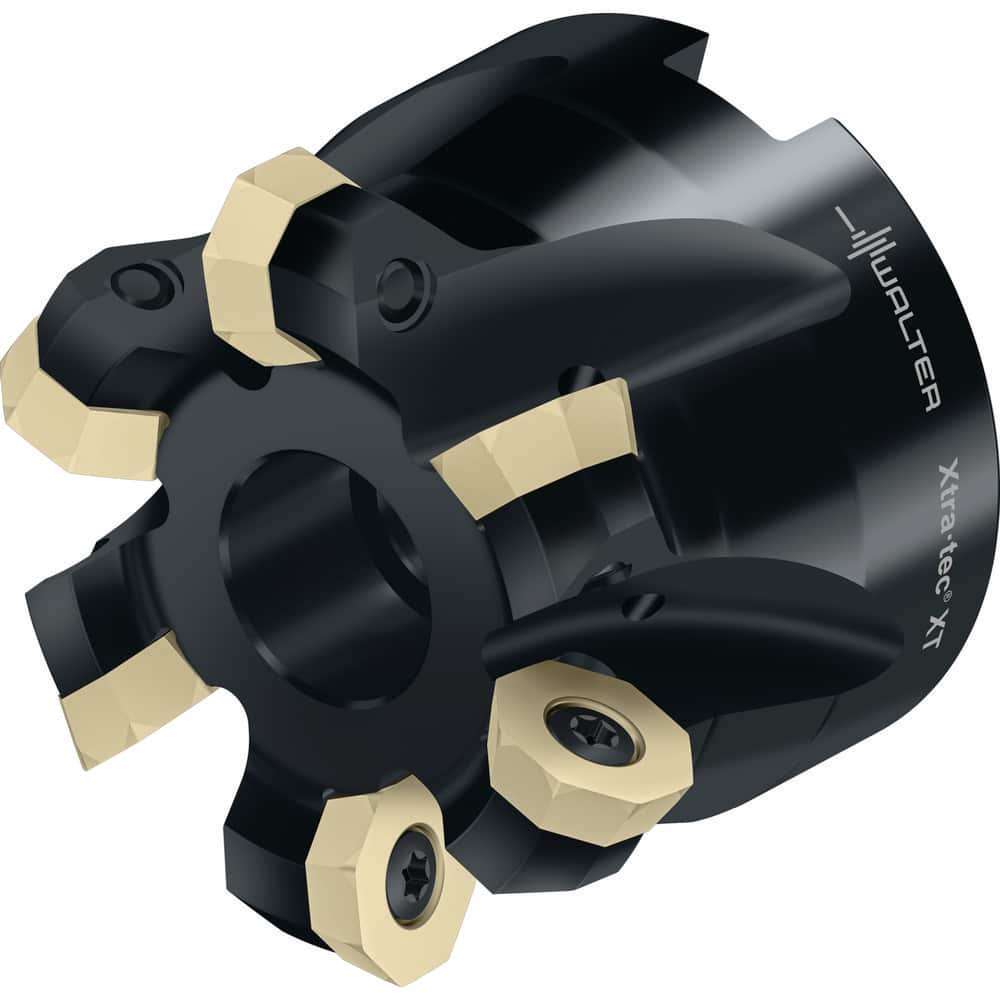

Indexable Chamfer & Angle Face Mills; Minimum Cutting Diameter (mm): 56.00; Maximum Cutting Diameter (mm): 66.00; Maximum Depth of Cut (mm): 10.00; Arbor Hole Diameter (mm): 27.00; Lead Angle: 43; Compatible Insert Size Code: 06; Cutter Style: M5004; Cutt
Item #: 13694716
Brand: Walter
Model #: 8078854
Product Specifications
| Minimum Cutting Diameter (mm) | 56.00 |
| Maximum Cutting Diameter (mm) | 66.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 43 |
| Compatible Insert Size Code | 06 |
| Cutter Style | M5004 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | M5004 |
| Hub Diameter (mm) | 60.00 |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Maximum RPM | 17000 |
| Tool Application | Milling |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H; O |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
