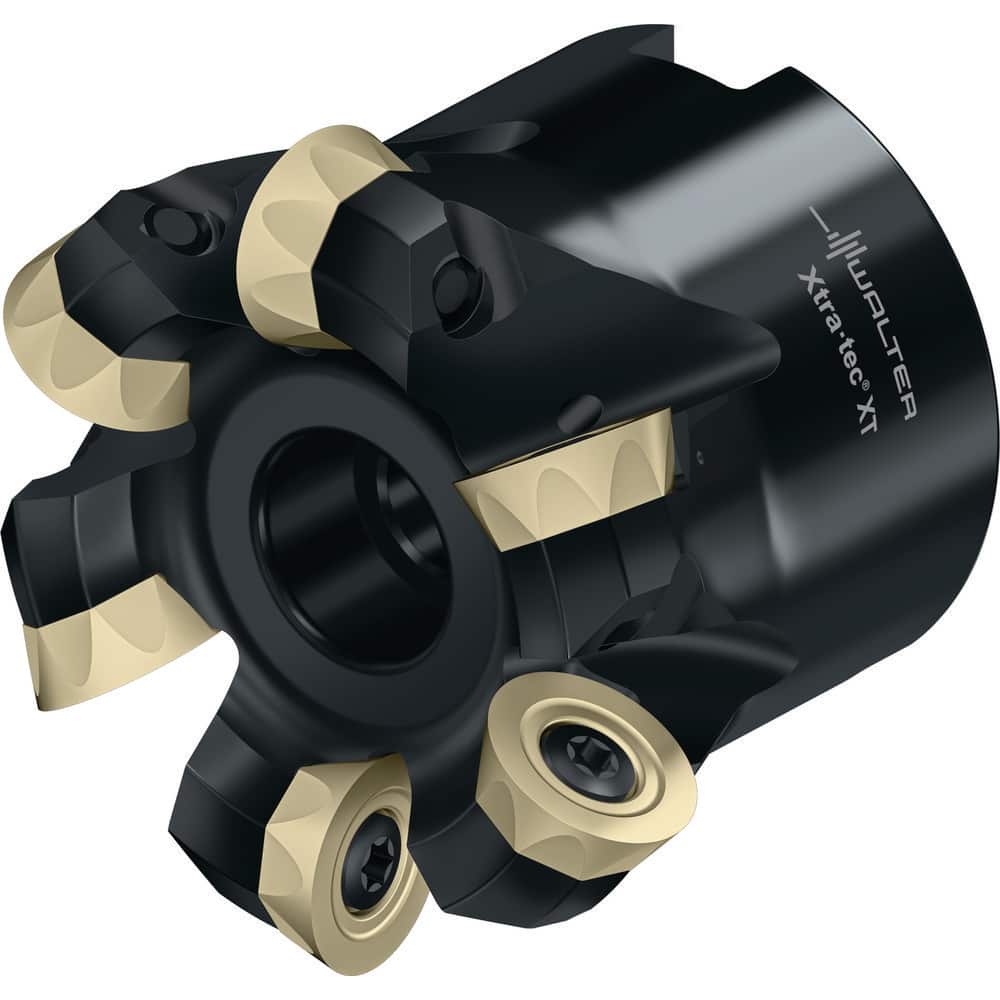

Indexable Copy Face Mills; Maximum Depth Of Cut: 0.3150 in; Compatible Insert Size Code: 16; Arbor Hole Diameter (mm): 1.00; Maximum Ramping Angle: 11.0; Overall Height (mm): 2.0000 in; Series: M5468; Number of Cutter Inserts: 6; Cutter Style: M5468; Maxi
Item #: 13694666
Brand: Walter
Model #: 7988867
Product Specifications
| Maximum Depth Of Cut | 0.3150 in |
| Compatible Insert Size Code | 16 |
| Arbor Hole Diameter (mm) | 1.00 |
| Maximum Ramping Angle | 11.0 |
| Overall Height (mm) | 2.0000 in |
| Series | M5468 |
| Number of Cutter Inserts | 6 |
| Cutter Style | M5468 |
| Maximum Rpm | 20400.000 |
| Tool Application | Face Milling |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Through Coolant | Normal Pressure |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.8750 |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 in |
| Minimum Cutting Diameter (Decimal Inch) | 1.8700 in |
