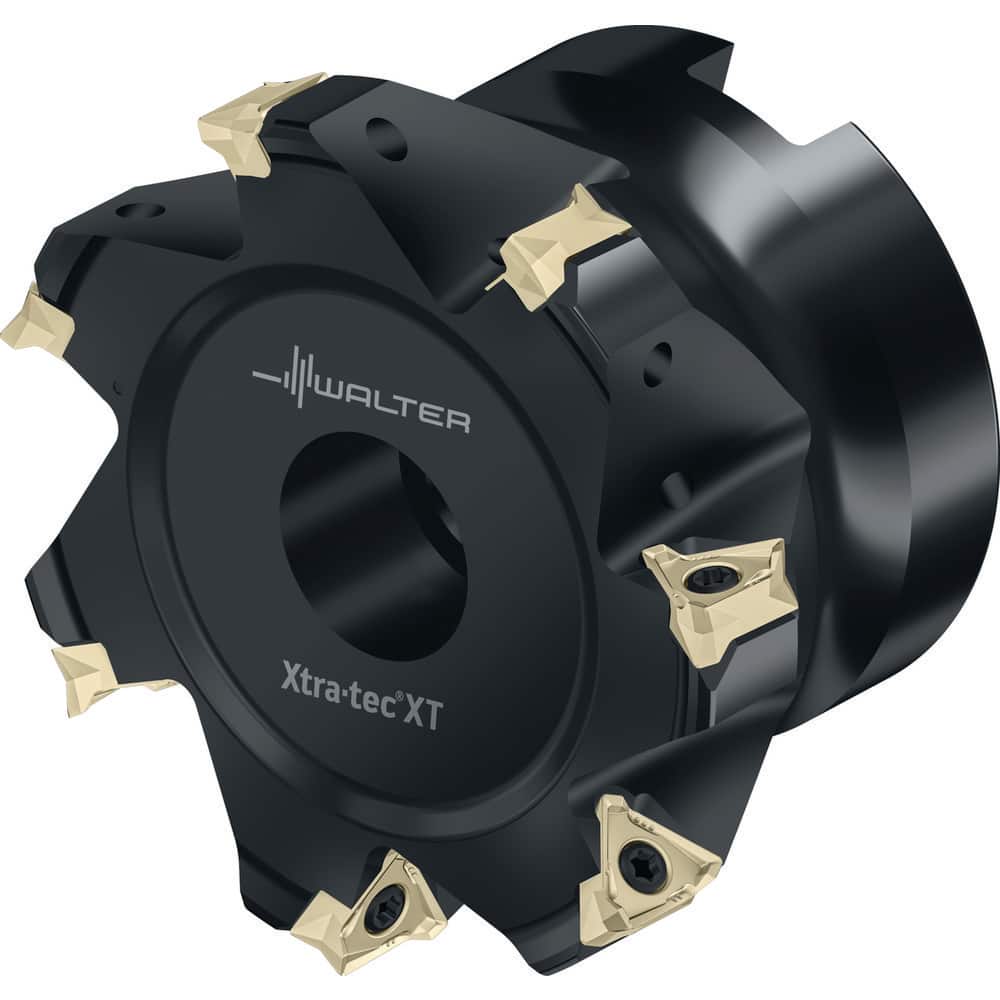

Indexable Square-Shoulder Face Mill: M5137-063-B22-07-05, 22.0000″ Arbor Hole Dia, Uses 7, 11 Inserts, Through Coolant, Series M5137
Item #: 13694351
Brand: Walter
Model #: 7951788
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Inch) | 22 |
| Arbor Hole Diameter (Decimal Inch) | 22.0000 |
| Compatible Insert Size Code | 11 |
| Maximum Ramping Angle | 0.90 |
| Cutter Style | M5137 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Rake Angle | 0.0 |
| Series | M5137 |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Hub Diameter (mm) | 48.00 |
| Hub Diameter (Decimal Inch) | 48.0000 |
| Hub Diameter (Inch) | 48 |
| Maximum RPM | 15400 |
| Tool Application | Facing; Helical Interpolation; Shouldering |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 7 |
