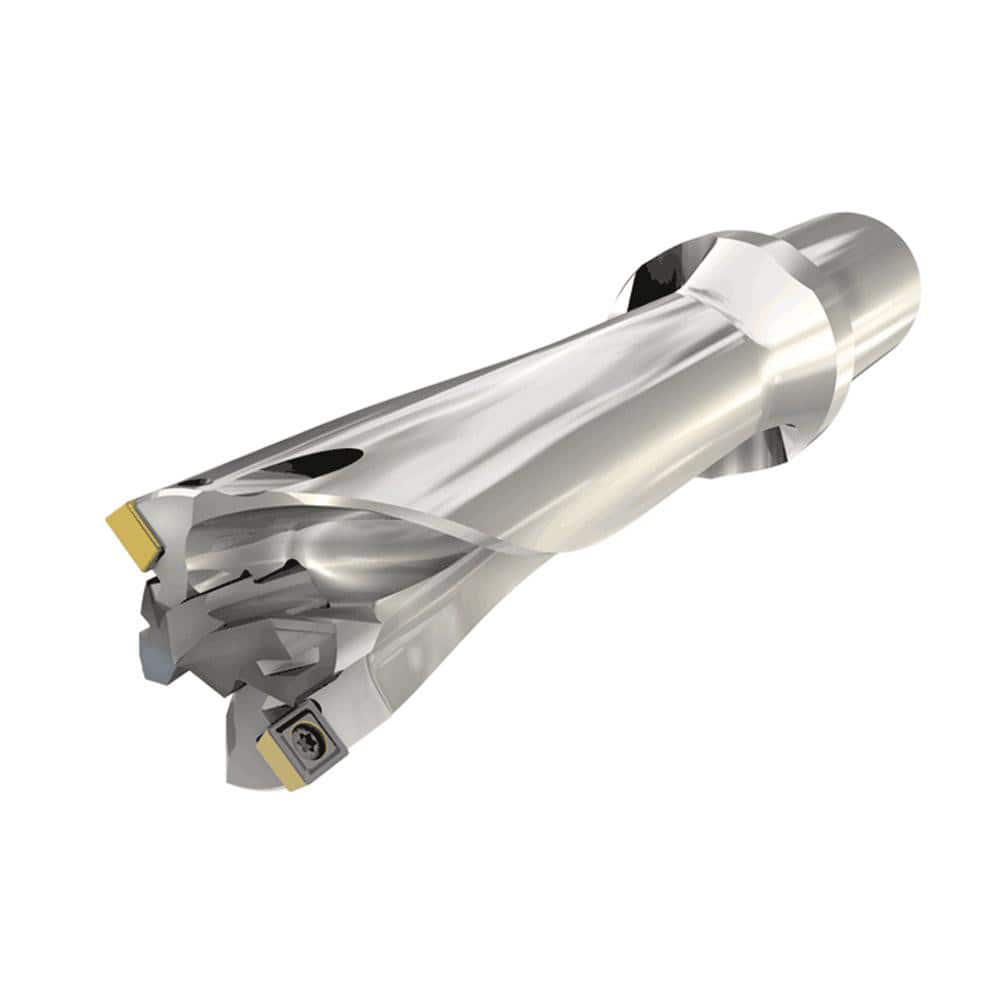

Indexable Insert Drills; Drill Style: MNC; Maximum Drill Diameter (Inch): 1-5/8; Maximum Drill Diameter (Decimal Inch): 1.6250; Maximum Drill Depth (Decimal Inch): 5.0650; Shank Type: Weldon Flat; Shank Diameter (Inch): 1-1/2; Shank Diameter (Decimal Inch
Item #: 13649322
Brand: Iscar
Model #: 3393255
Product Specifications
| Drill Style | MNC |
| Maximum Drill Diameter (Inch) | 1-5/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.6250 |
| Maximum Drill Depth (Decimal Inch) | 5.0650 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOGT |
| Compatible Insert Size Code | 100408 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 9.4400 |
| Overall Length (mm) | 9.44 |
| Series | MNC |
| Flute Length (Decimal Inch) | 5.0650 |
| Shank Length (Decimal Inch) | 2.6700 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Coolant Through | Yes |
