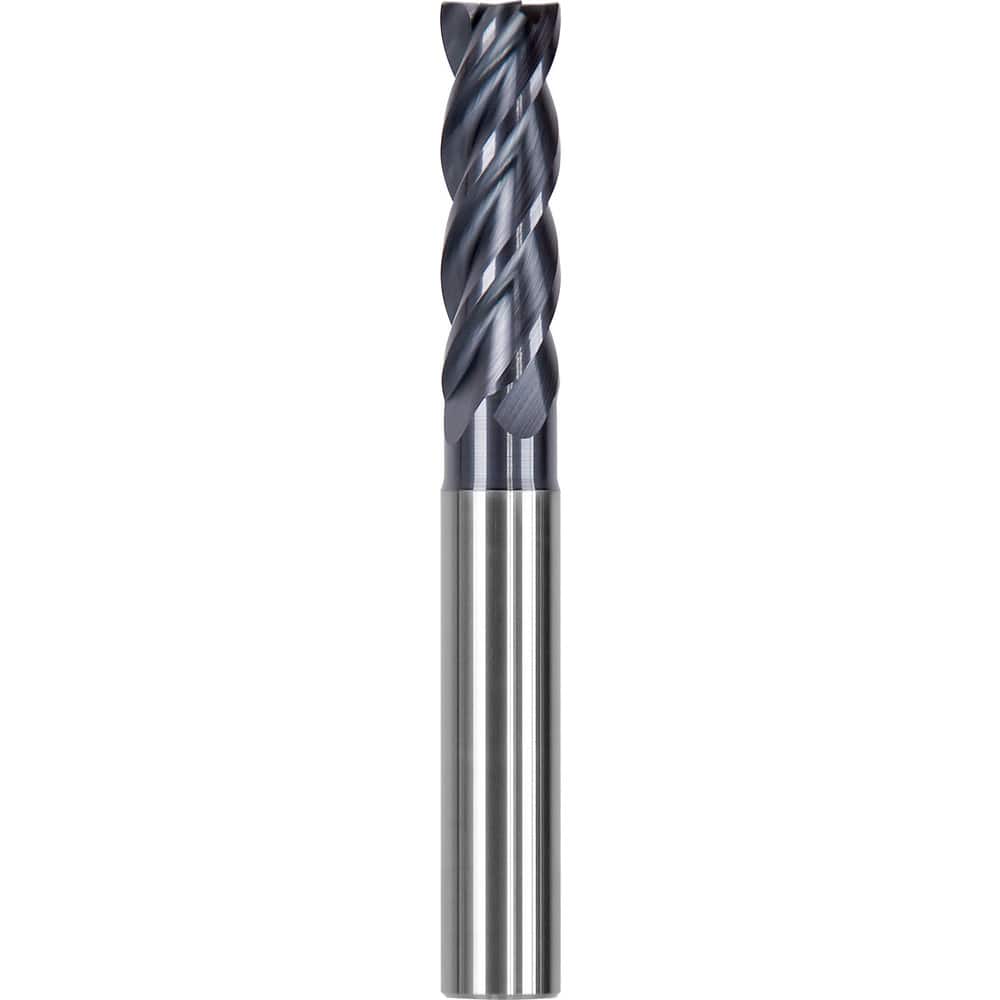

Corner Chamfer End Mill: 0.375″ Dia, 1.125″ LOC, 4 Flute, 0.075″ Chamfer Width, Solid Carbide 3-1/2″ OAL, 3/8″ Shank Dia, AlTiN Coated, Centercutting
Item #: 13642855
Brand: HAIMER
Model #: H50124024
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Chamfer Width (Decimal Inch) | 0.0750 |
| Mill Diameter (Inch) | 3/8 |
| Chamfer Angle | 45 |
| Length of Cut (Inch) | 1-1/8 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | Yes |
| End Type | Single; Corner Chamfer |
| Length Type | Long |
| Flute Type | Helical |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (mm) | 3.50 |
| Overall Length (Decimal Inch) | 3.5000 |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1250 |
