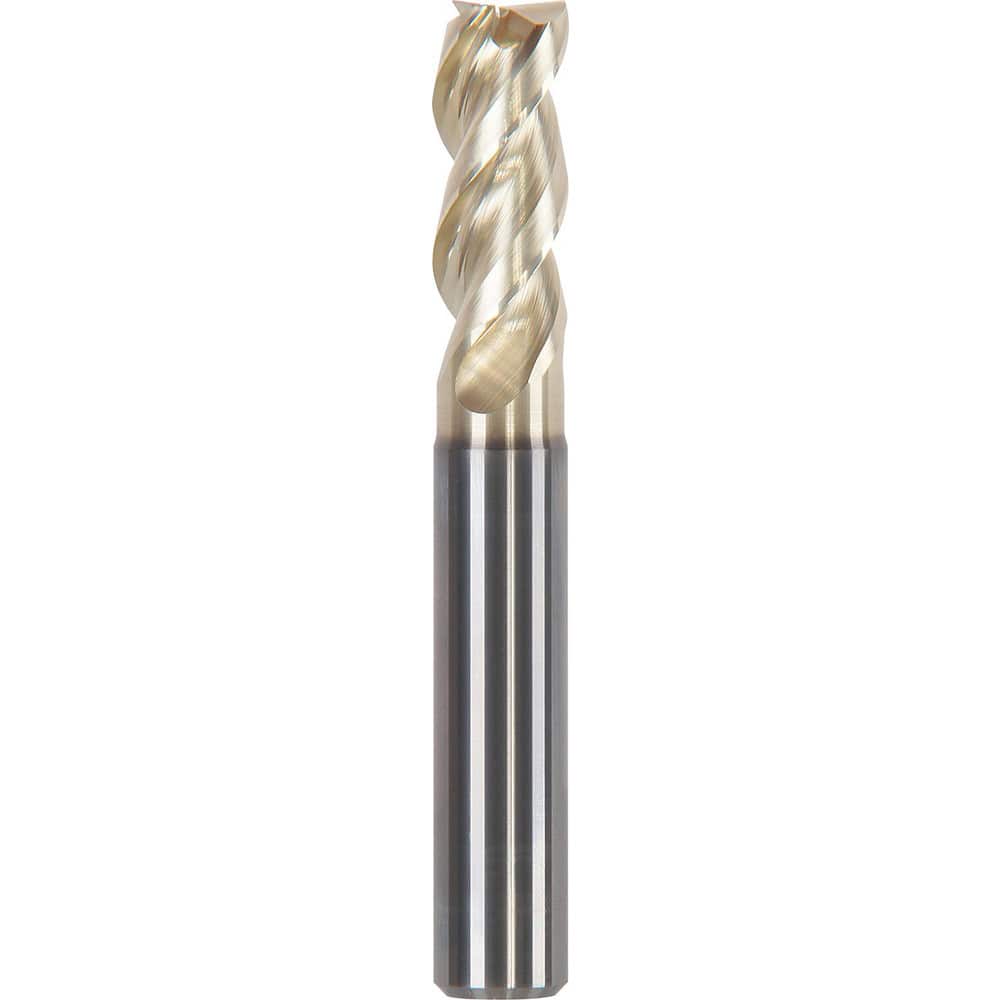

Corner Chamfer End Mill: 0.7087″ Dia, 1.2598″ LOC, 3 Flute, 0.0071″ Chamfer Width, Solid Carbide 3.66 mm OAL, ZrN Coated, Centercutting
Item #: 13640768
Brand: HAIMER
Model #: H50173298SL
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7087 |
| Chamfer Width (mm) | 0.18 |
| Chamfer Width (Decimal Inch) | 0.0071 |
| Mill Diameter (mm) | 18.00 |
| Chamfer Angle | 45 |
| Length of Cut (mm) | 32.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | Yes |
| End Type | Single; Corner Chamfer |
| Length Type | Regular |
| Flute Type | Helical |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 3.66 |
| Overall Length (Decimal Inch) | 3.6600 |
| Single Or Double End | Single |
| Coating/Finish | ZrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2598 |
