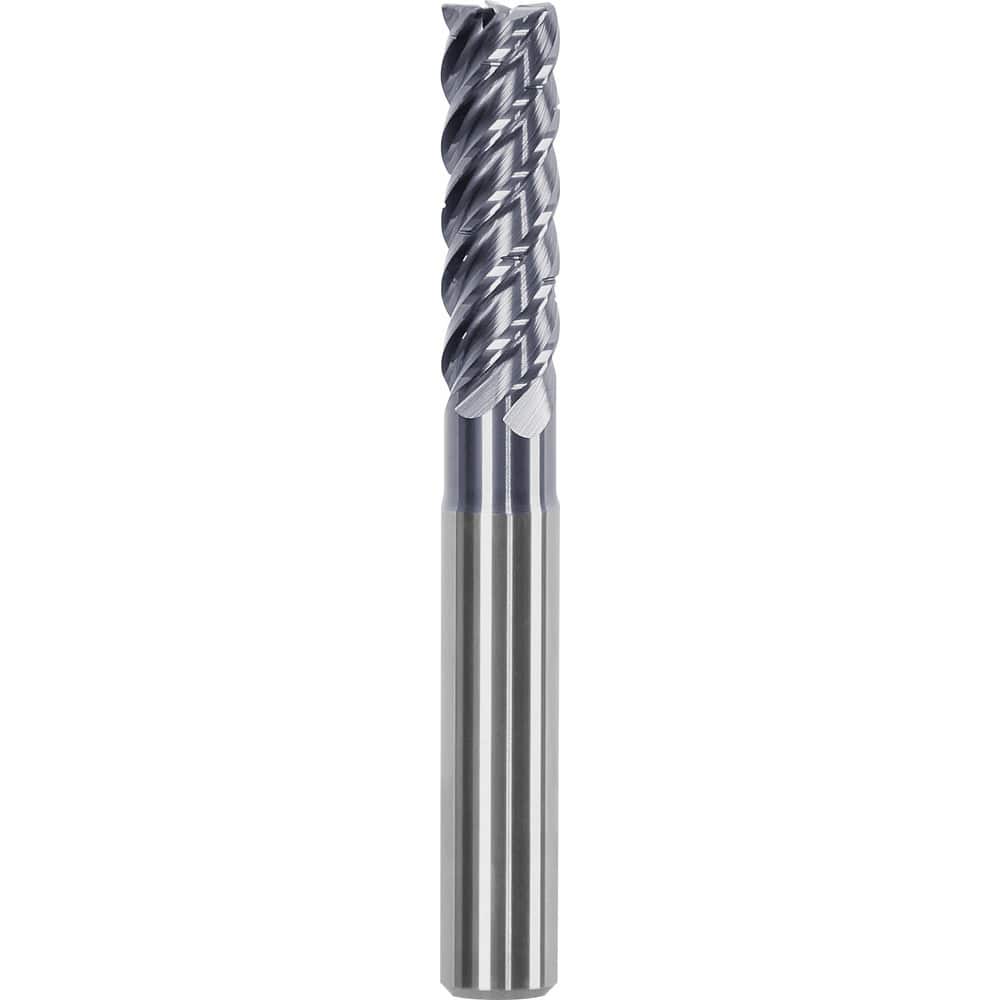

Corner Chamfer End Mill: 0.6299″ Dia, 1.8898″ LOC, 5 Flute, 0.0197″ Chamfer Width, Solid Carbide 4.53 mm OAL, AlTiN Coated
Item #: 13639018
Brand: HAIMER
Model #: P51155106
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6299 |
| Chamfer Width (mm) | 0.50 |
| Chamfer Width (Decimal Inch) | 0.0197 |
| Mill Diameter (mm) | 16.00 |
| Chamfer Angle | 45 |
| Length of Cut (mm) | 48.00 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Extended Reach | Yes |
| End Type | Single; Corner Chamfer |
| Length Type | Long |
| Flute Type | Helical |
| Centercutting | No |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 4.53 |
| Overall Length (Decimal Inch) | 4.5300 |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.8898 |
