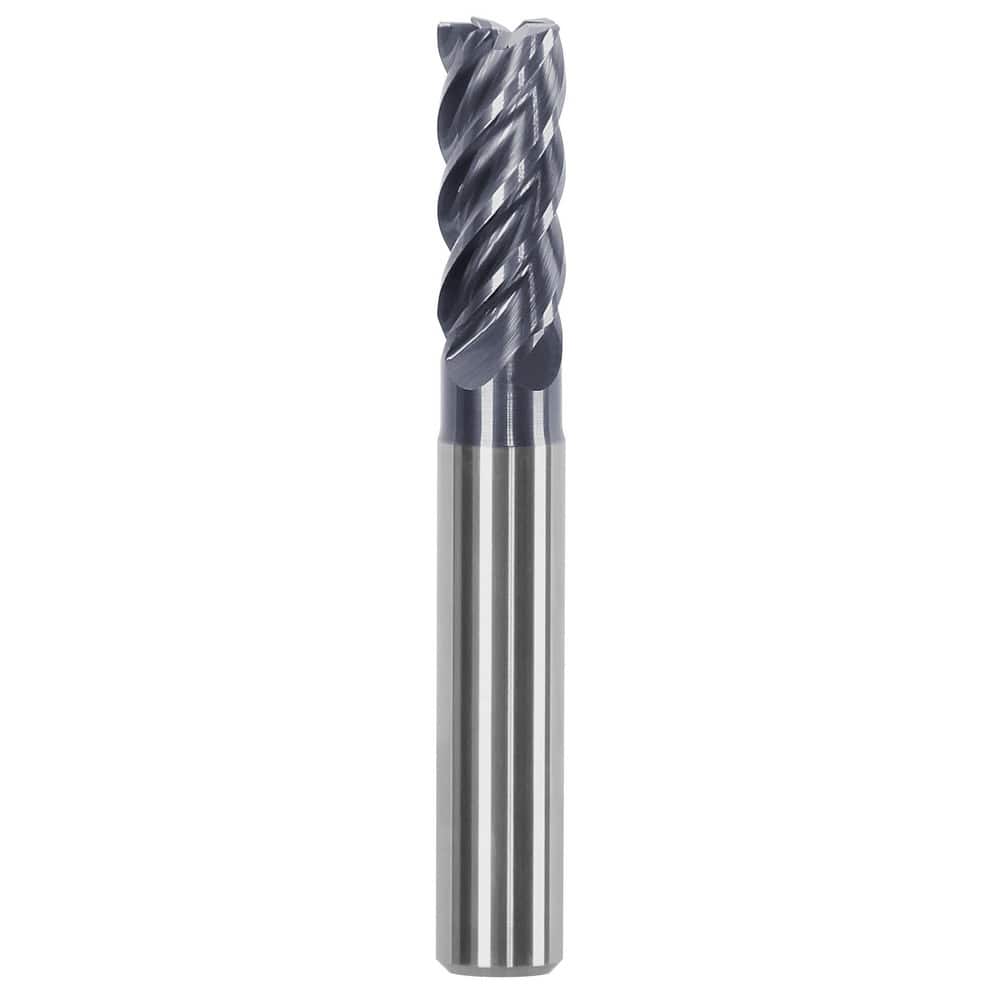

Corner Chamfer End Mill: 0.7874″ Dia, 1.4961″ LOC, 5 Flute, 0.0236″ Chamfer Width, Solid Carbide 4.13 mm OAL, AlTiN Coated
Item #: 13638986
Brand: HAIMER
Model #: P50195066SL
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7874 |
| Chamfer Width (mm) | 0.60 |
| Chamfer Width (Decimal Inch) | 0.0236 |
| Mill Diameter (mm) | 20.00 |
| Chamfer Angle | 45 |
| Length of Cut (mm) | 38.00 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | Yes |
| End Type | Single; Corner Chamfer |
| Length Type | Regular |
| Flute Type | Helical |
| Centercutting | No |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 4.13 |
| Overall Length (Decimal Inch) | 4.1300 |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.4961 |
