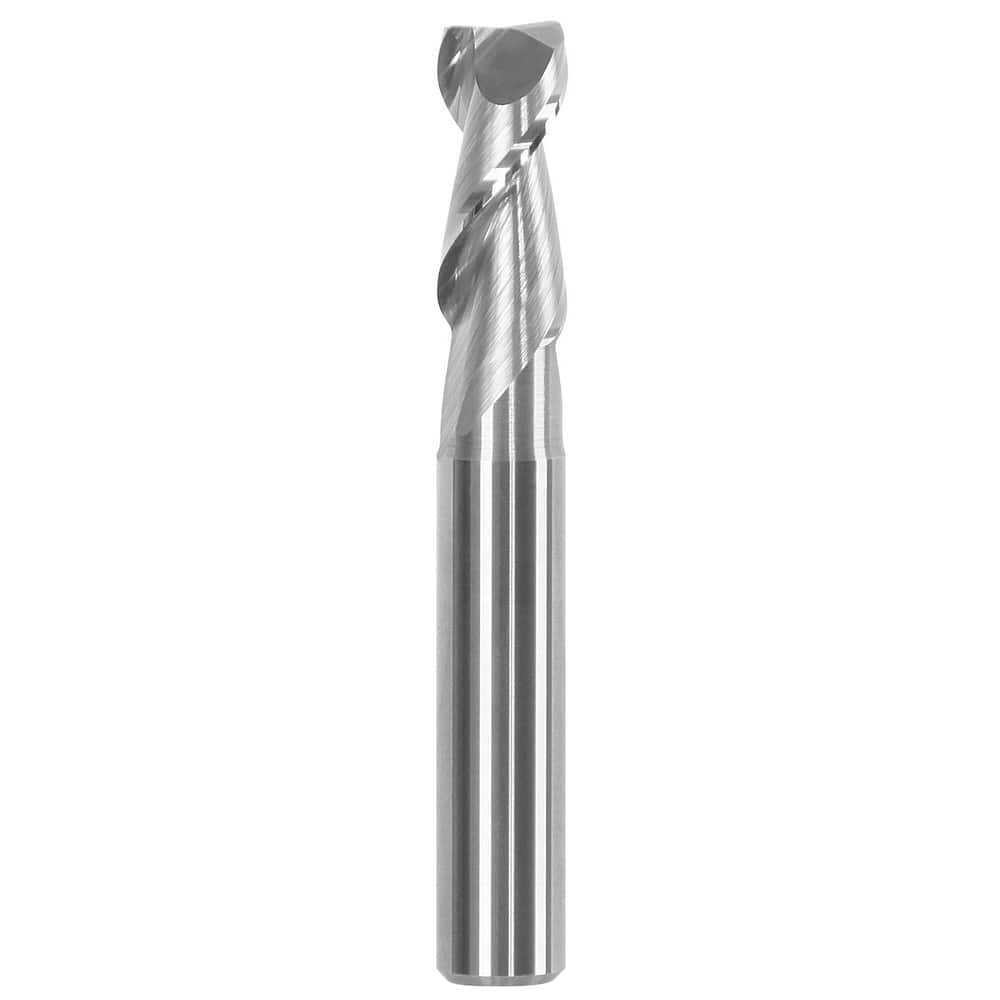

Corner Chamfer End Mill: 0.1969″ Dia, 0.5118″ LOC, 2 Flute, 0.002″ Chamfer Width, Solid Carbide 2.28 mm OAL, Bright/Uncoated, Centercutting
Item #: 13638937
Brand: HAIMER
Model #: H5052187
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1969 |
| Chamfer Width (mm) | 0.05 |
| Chamfer Width (Decimal Inch) | 0.0020 |
| Mill Diameter (mm) | 5.00 |
| Chamfer Angle | 45 |
| Length of Cut (mm) | 13.00 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | Yes |
| End Type | Single; Corner Chamfer |
| Length Type | Regular |
| Flute Type | Helical |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 2.28 |
| Overall Length (Decimal Inch) | 2.2800 |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5118 |
