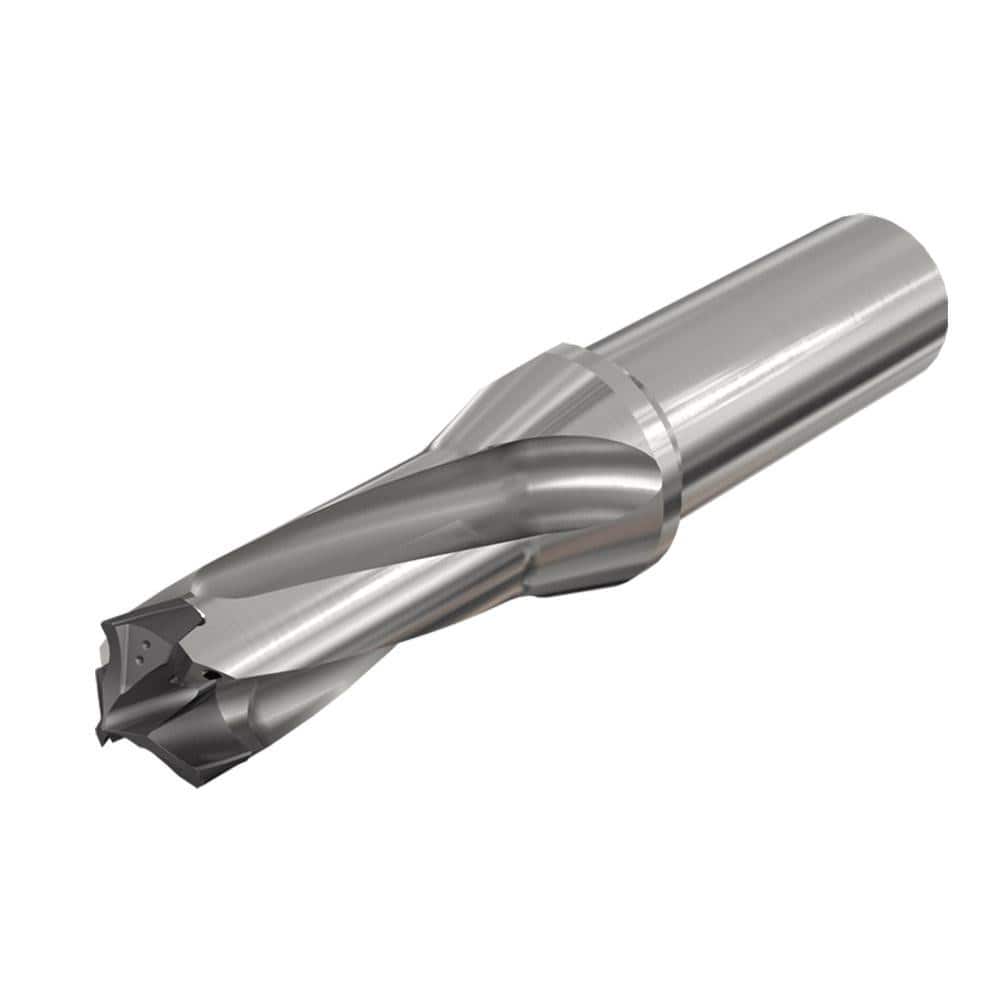

Replaceable Tip Drill: 22 to 22.9 mm Drill Dia, 37.69 mm Max Depth, 25 mm Straight-Cylindrical Shank Uses H3P Inserts, 134.62 mm OAL, Through Coolant
Item #: 13627716
Brand: Iscar
Model #: 3363015
Product Specifications
| Minimum Drill Diameter (mm) | 22.00 |
| Maximum Drill Diameter (mm) | 22.90 |
| Maximum Drill Depth (mm) | 37.69 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 22 |
| Overall Length (mm) | 134.62 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (mm) | 37.69 |
| Body Length | 78.62 |
| Shank Length (mm) | 56.00 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
