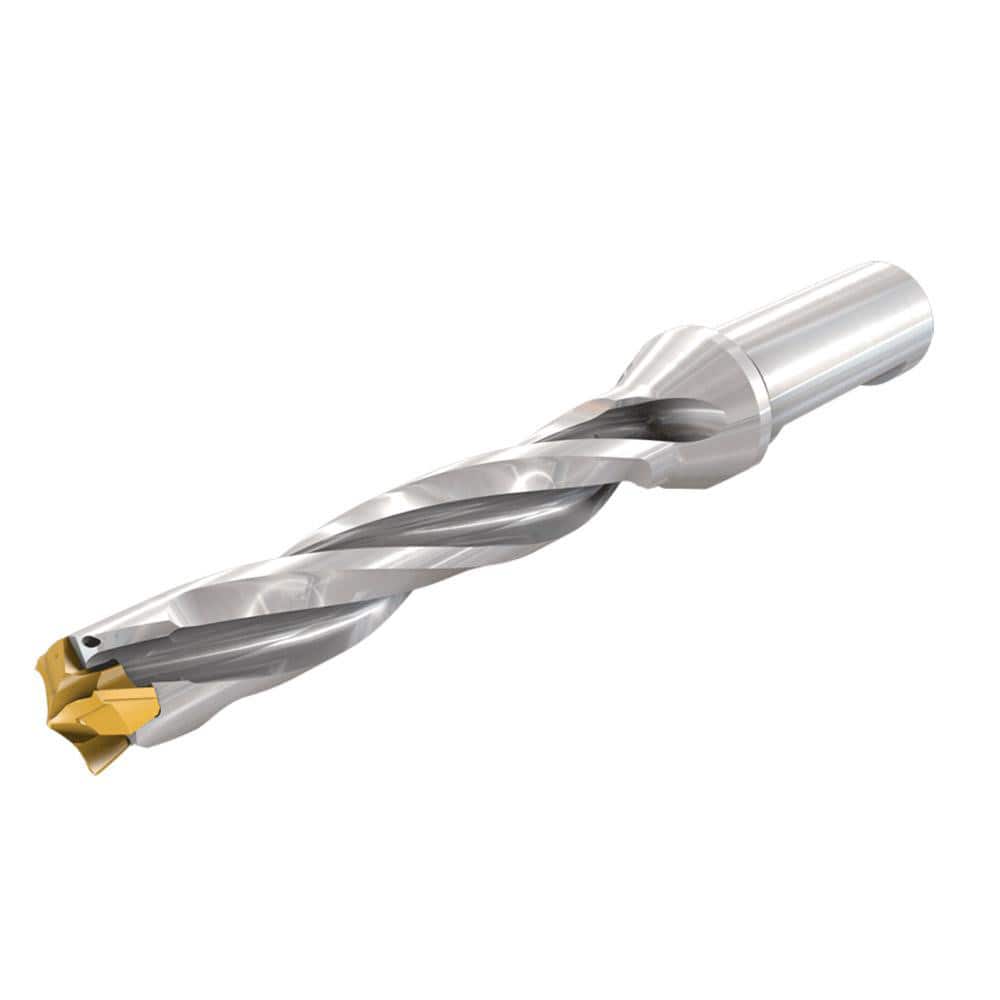

Replaceable Tip Drill: 0.945 to 0.98'' Drill Dia, 4.933″ Max Depth, 1.25'' Flatted Shank Uses H3P Inserts, 9.04″ OAL, Through Coolant
Item #: 13627393
Brand: Iscar
Model #: 3346984
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.9450 |
| Maximum Drill Diameter (Decimal Inch) | 0.9800 |
| Maximum Drill Depth (Decimal Inch) | 4.9330 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 24 |
| Overall Length (Decimal Inch) | 9.0400 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (Decimal Inch) | 4.9330 |
| Body Length (Decimal Inch) | 6.6800 |
| Shank Length (Decimal Inch) | 2.3580 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
