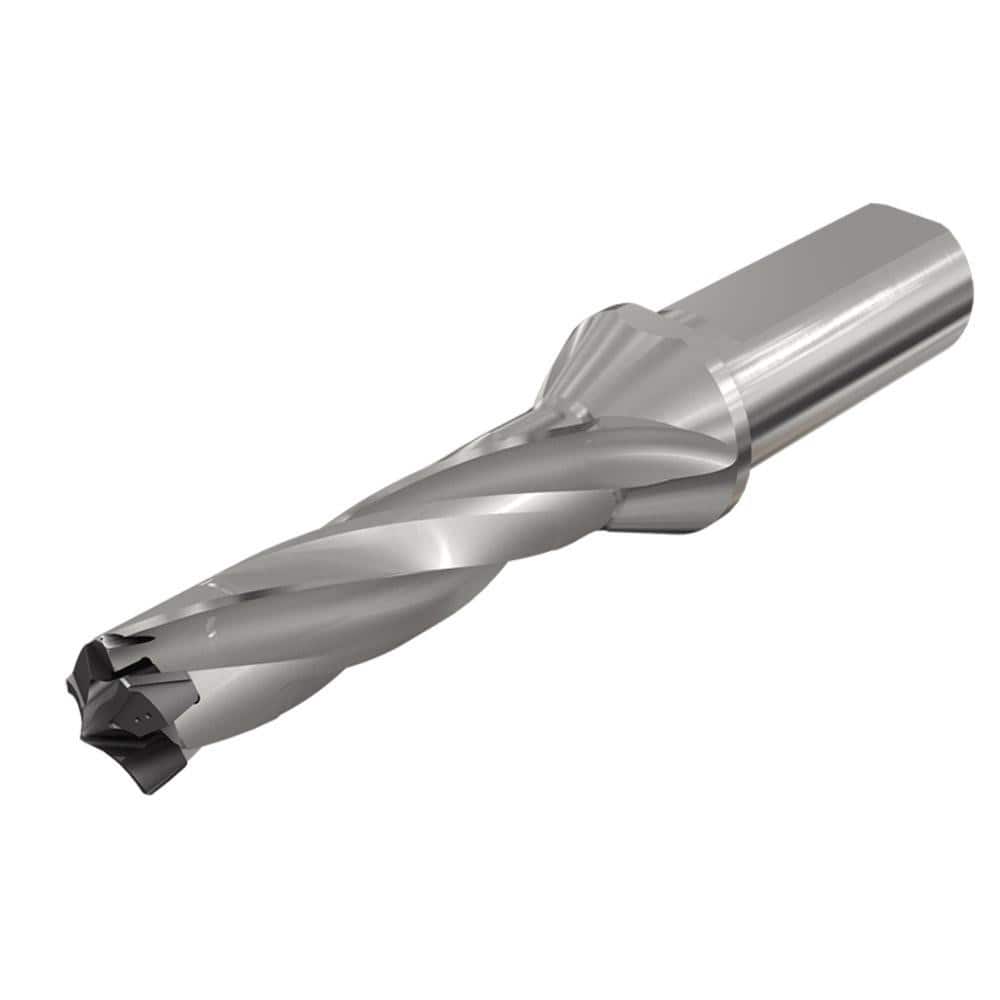

Replaceable Tip Drill: 12 to 12.4 mm Drill Dia, 38.71 mm Max Depth, 16 mm Flatted Shank Uses H3P Inserts, 108.92 mm OAL, Through Coolant
Item #: 13627369
Brand: Iscar
Model #: 3335692
Product Specifications
| Minimum Drill Diameter (mm) | 12.00 |
| Maximum Drill Diameter (mm) | 12.40 |
| Maximum Drill Depth (mm) | 38.71 |
| Shank Type | Flatted |
| Shank Diameter (mm) | 16.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 12 |
| Overall Length (mm) | 108.92 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (mm) | 38.71 |
| Body Length | 60.92 |
| Shank Length (mm) | 48.00 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
