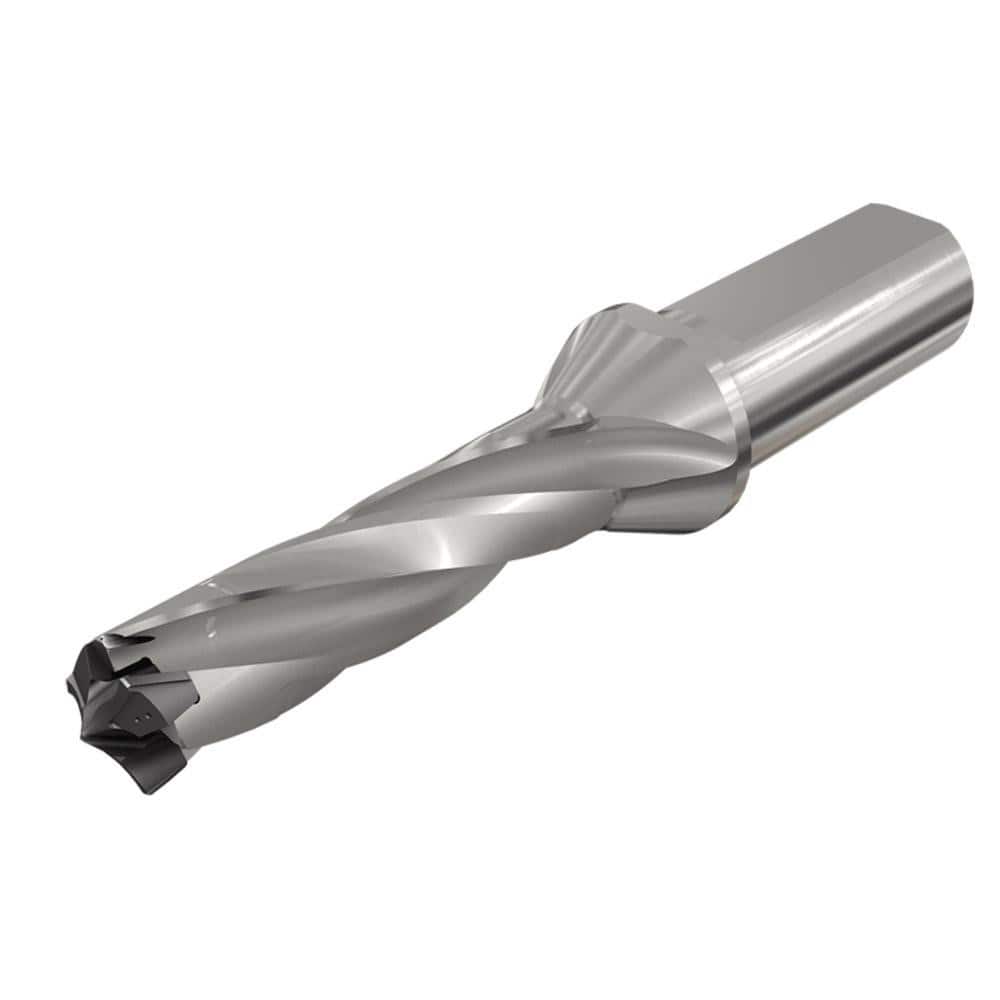

Replaceable Tip Drill: 17 to 17.9 mm Drill Dia, 54.52 mm Max Depth, 20 mm Flatted Shank Uses H3P Inserts, 136.22 mm OAL, Through Coolant
Item #: 13626916
Brand: Iscar
Model #: 3335700
Product Specifications
| Minimum Drill Diameter (mm) | 17.00 |
| Maximum Drill Diameter (mm) | 17.90 |
| Maximum Drill Depth (mm) | 54.52 |
| Shank Type | Flatted |
| Shank Diameter (mm) | 20.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 17 |
| Overall Length (mm) | 136.22 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (mm) | 54.52 |
| Body Length | 86.22 |
| Shank Length (mm) | 50.00 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
