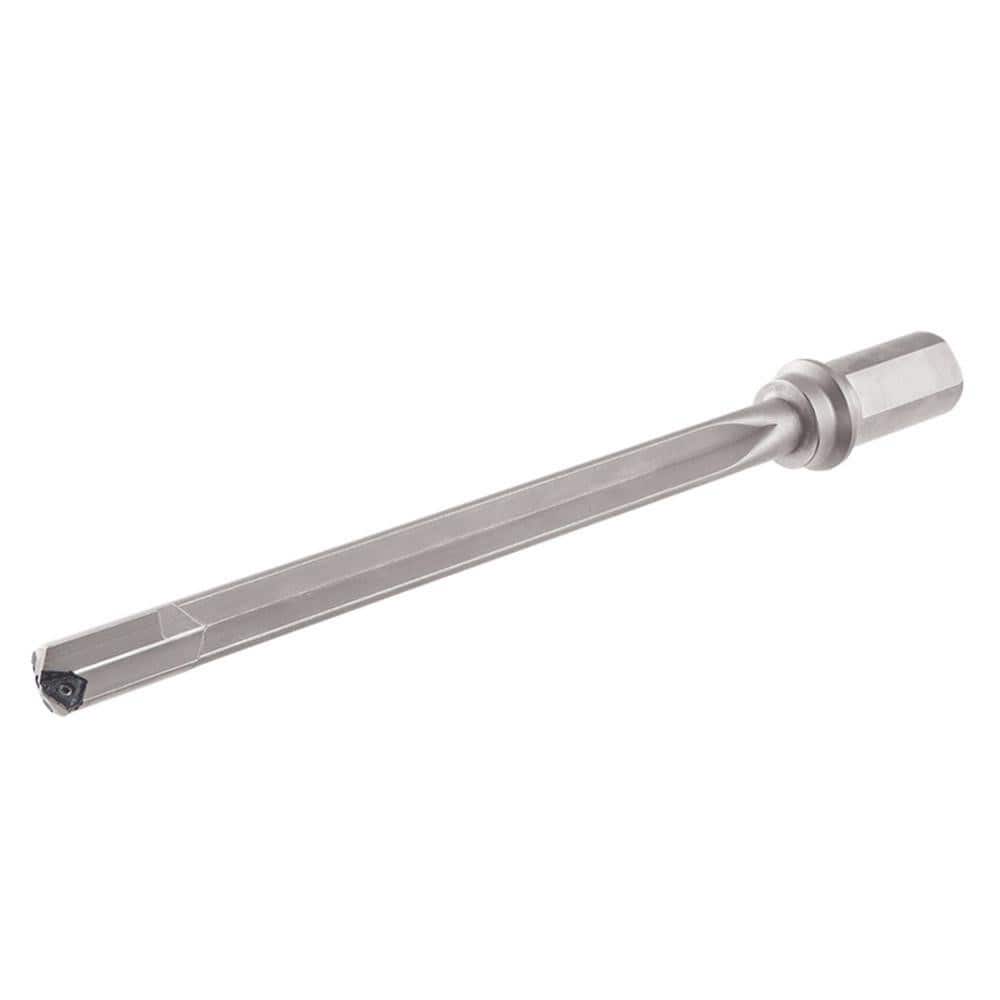

Indexable Insert Drills; Drill Style: GD-DH; Maximum Drill Diameter (mm): 27.00; Maximum Drill Diameter (Inch): 1-1/16; Maximum Drill Depth (mm): 283.60; Shank Type: Flatted; Shank Diameter (Inch): 40; Shank Diameter (mm): 40.00; Number of Drill Inserts:
Item #: 13626700
Brand: Iscar
Model #: 4834311
Product Specifications
| Drill Style | GD-DH |
| Maximum Drill Diameter (mm) | 27.00 |
| Maximum Drill Diameter (Inch) | 1-1/16 |
| Maximum Drill Depth (mm) | 283.60 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 40 |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | TOGT |
| Compatible Insert Size Code | 120405 |
| Drill Depth by Diameter Ratio | 10xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 405.00 |
| Series | GD-DH |
| Flute Length (mm) | 283.60 |
| Body Length | 335.00 |
| Shank Length (mm) | 70.00 |
| Minimum Achievable Hole Tolerance | -0.0700 mm |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Coolant Through | Yes |
