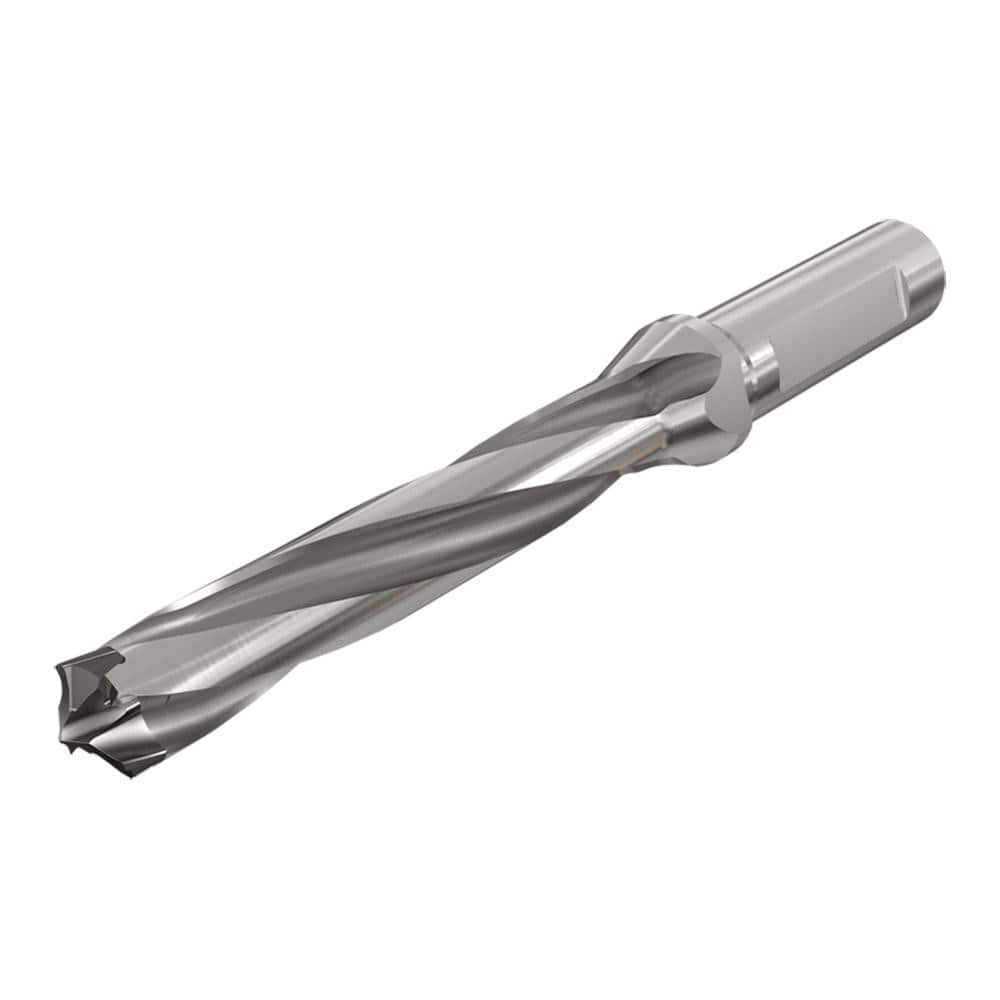

Replaceable Tip Drill: 14.5 to 14.9 mm Drill Dia, 75.6 mm Max Depth, 16 mm Flatted Shank Uses H3P Inserts, 150.33 mm OAL, Through Coolant
Item #: 13626619
Brand: Iscar
Model #: 3335716
Product Specifications
| Minimum Drill Diameter (mm) | 14.50 |
| Maximum Drill Diameter (mm) | 14.90 |
| Maximum Drill Depth (mm) | 75.60 |
| Shank Type | Flatted |
| Shank Diameter (mm) | 16.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 14 |
| Overall Length (mm) | 150.33 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (mm) | 75.60 |
| Body Length | 102.33 |
| Shank Length (mm) | 48.00 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
