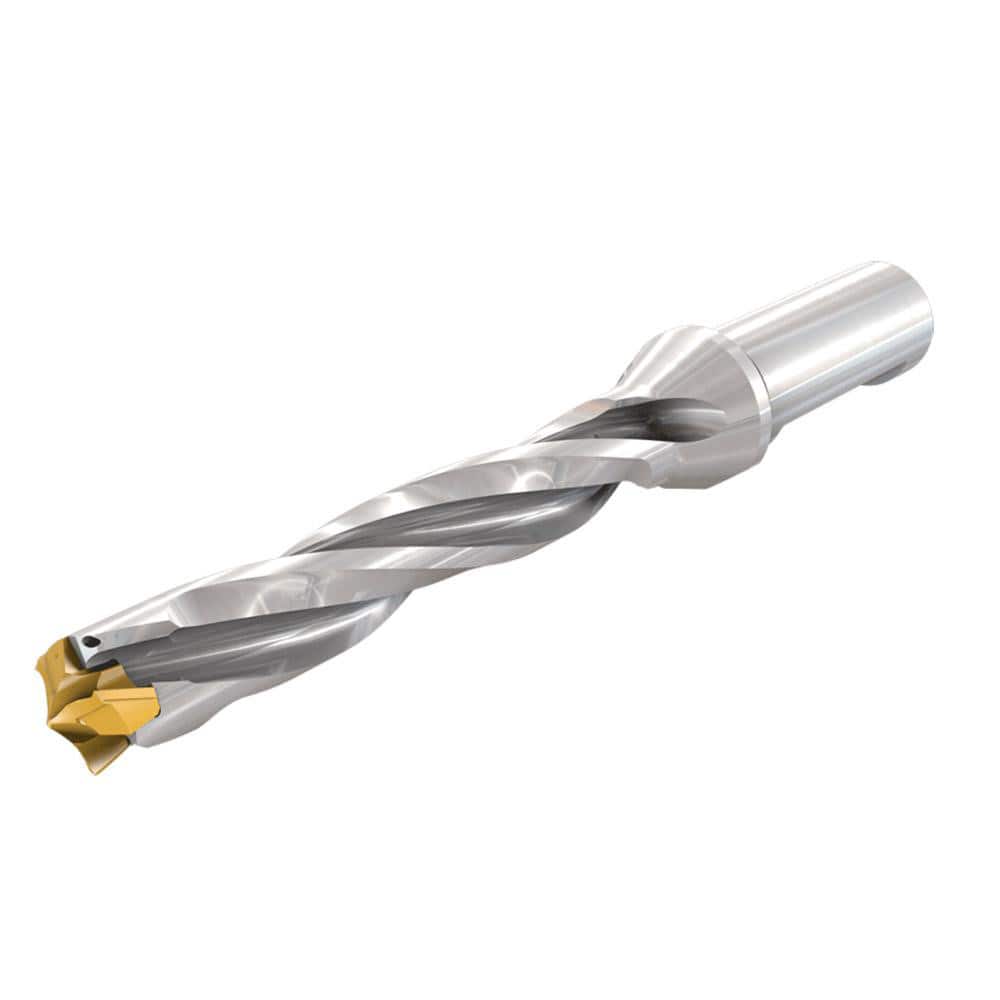

Replaceable Tip Drill: 0.571 to 0.587'' Drill Dia, 2.979″ Max Depth, 0.625'' Flatted Shank Uses H3P Inserts, 5.92″ OAL, Through Coolant
Item #: 13626452
Brand: Iscar
Model #: 3346838
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.5710 |
| Maximum Drill Diameter (Decimal Inch) | 0.5870 |
| Maximum Drill Depth (Decimal Inch) | 2.9790 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 14.5 |
| Overall Length (Decimal Inch) | 5.9200 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (Decimal Inch) | 2.9790 |
| Body Length (Decimal Inch) | 4.0320 |
| Shank Length (Decimal Inch) | 1.8870 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
