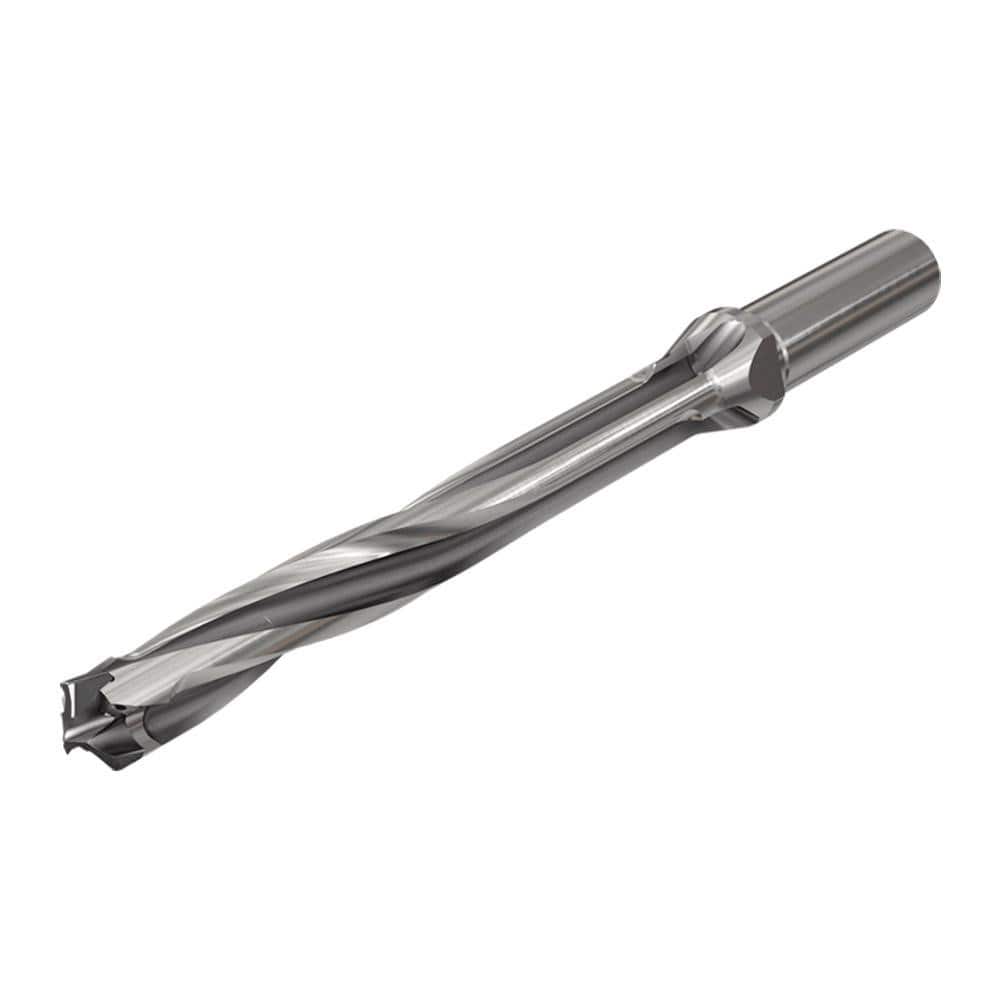

Replaceable Tip Drill: 13.5 to 13.9 mm Drill Dia, 110.91 mm Max Depth, 16 mm Straight-Cylindrical Shank Uses H3P Inserts, 183.8 mm OAL, Through Coolant
Item #: 13626163
Brand: Iscar
Model #: 3392169
Product Specifications
| Minimum Drill Diameter (mm) | 13.50 |
| Maximum Drill Diameter (mm) | 13.90 |
| Maximum Drill Depth (mm) | 110.91 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 100.00 to 125.00 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 13.5 |
| Overall Length (mm) | 183.80 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (mm) | 110.91 |
| Body Length | 135.83 |
| Shank Length (mm) | 47.97 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
