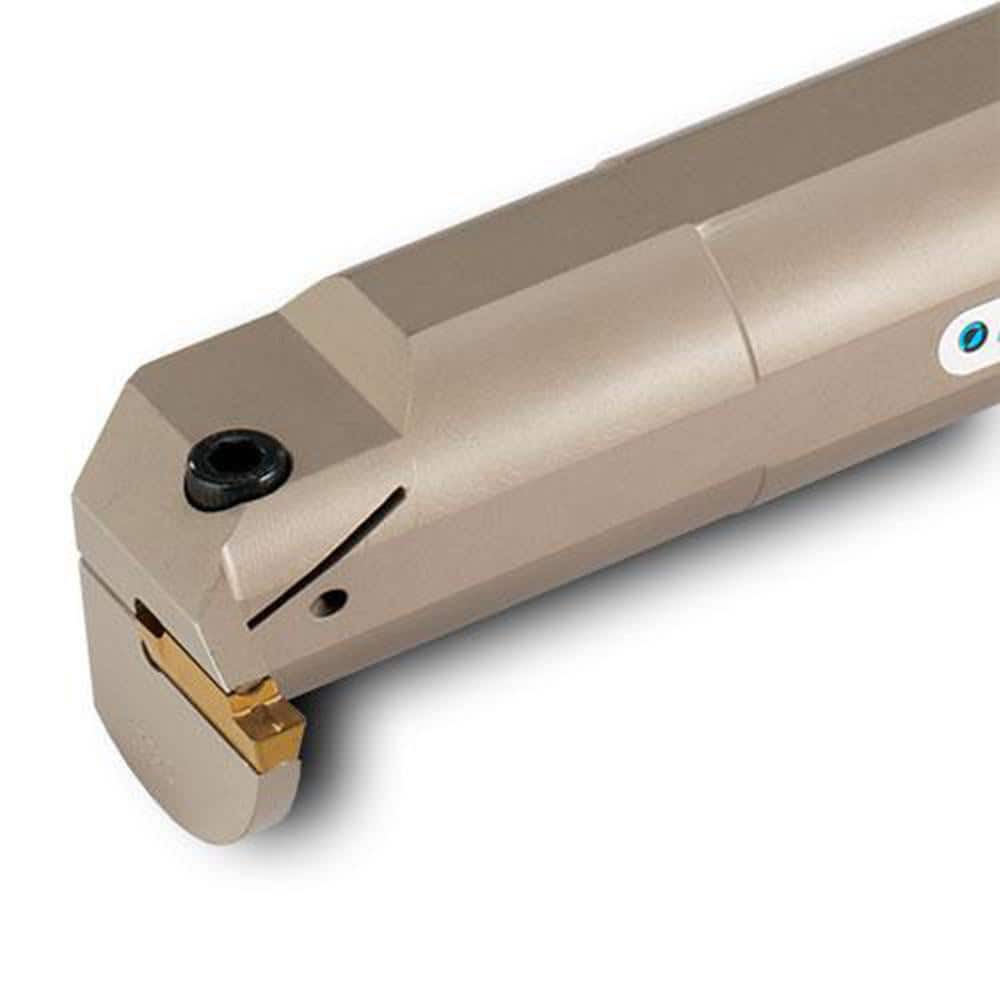

Indexable Grooving Toolholder: TTIR38.1-4C-T12, 0.1180″ Max Groove Width 0.4700″ Max Depth, Uses TD 4 & TS 4 Inserts, Through Coolant
Item #: 13577887
Brand: Ingersoll Cutting Tools
Model #: 6163787
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 4 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Toolholder Style | TTIR |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 4; TS 4 |
| Series | TTIR/L |
| Shank Length (Decimal Inch) | 9.4400 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Center to Cutting Edge (Decimal Inch) | 1.3000 |
| Minimum Hole Diameter (Decimal Inch) | 1.9700 |
| Head Length (Decimal Inch) | 2.5600 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
