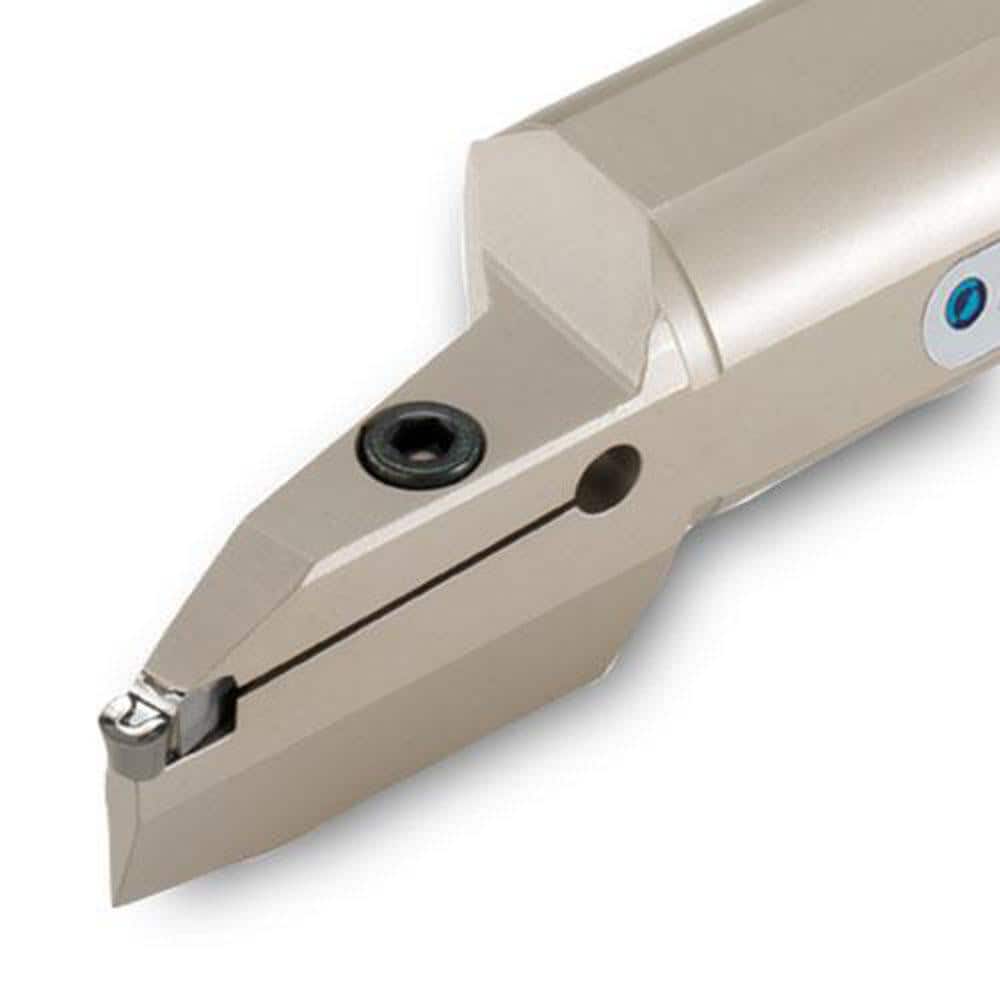

Indexable Grooving Toolholder: TGIUR38.1-8-15A, 0.2360″ Max Groove Width 3.2700″ Max Depth, Uses TD 8 & TS 8 Inserts, Through Coolant
Item #: 13576913
Brand: Ingersoll Cutting Tools
Model #: 2800539
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 8 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 3.2700 |
| Minimum Groove Width (Inch) | 1/4 |
| Minimum Groove Width (Decimal Inch) | 0.2500 |
| Toolholder Style | TGIUR |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TS 8; TD 8 |
| Series | TGIUR/L |
| Shank Length (Decimal Inch) | 9.6400 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Center to Cutting Edge (Decimal Inch) | 0.6940 |
| Minimum Hole Diameter (Decimal Inch) | 6.3000 |
| Head Length (Decimal Inch) | 2.3600 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
