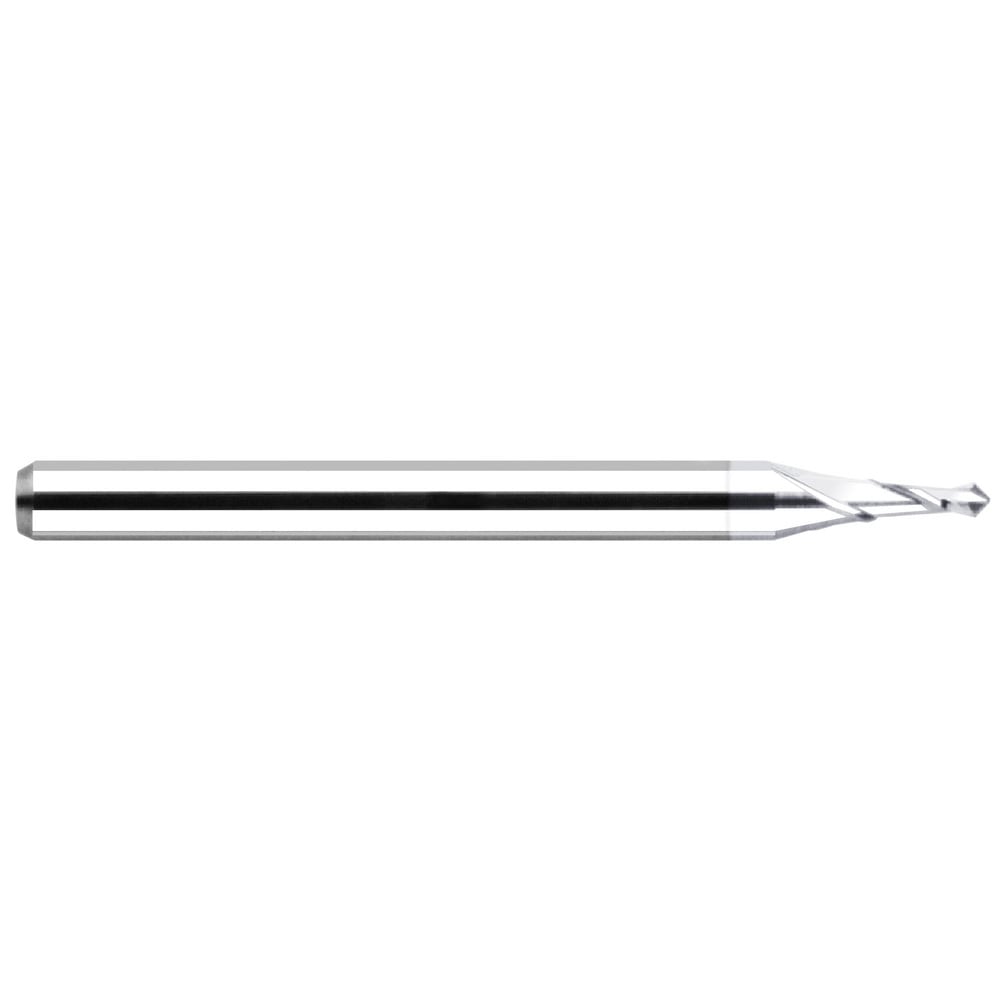

Spotting Drill: 90 ° Point, 2" OAL, Solid Carbide
Item #: 93275949
Brand: Harvey Tool
Model #: 37512-C8
Product Specifications
| Drill Point Angle | 90 |
| Cutting Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Inch) | 2 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiB2 |
| Single/Double Ended | Single |
| Series | Miniature Drills - Spotting Drills |
| Cutting Diameter (Inch) | 3/16 |
| Shank Diameter (Fractional Inch) | 3/16 |
| Flute Length (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 2.0000 |
| Flute Length (Decimal Inch) | 0.6250 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Point Type | Harvey Type II |
| Helix Angle | 90.00 |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thickness | 0.0130 |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
