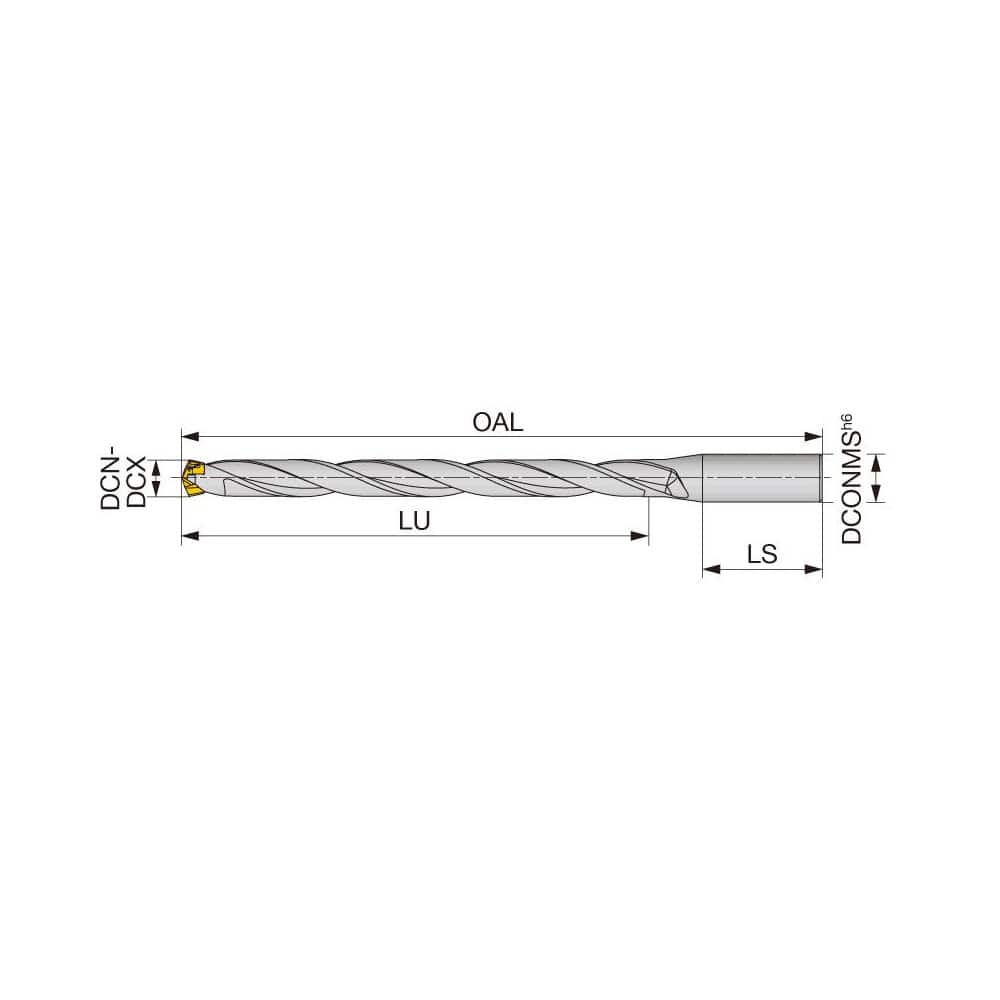

Replaceable Tip Drill: 0.591 to 0.626'' Drill Dia, 7.195″ Max Depth, 0.75'' Straight-Cylindrical Shank Uses DMP Inserts, 10″ OAL, Through Coolant
Item #: 13457932
Brand: Tungaloy
Model #: 6754749
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.5910 |
| Maximum Drill Diameter (Decimal Inch) | 0.6260 |
| Maximum Drill Depth (Decimal Inch) | 7.1950 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 6.0000 to 8.0000 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 150 |
| Overall Length (Decimal Inch) | 10.0000 |
| Series | TID |
| Toolholder Style | TID |
| Shank Length (Decimal Inch) | 1.9700 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
