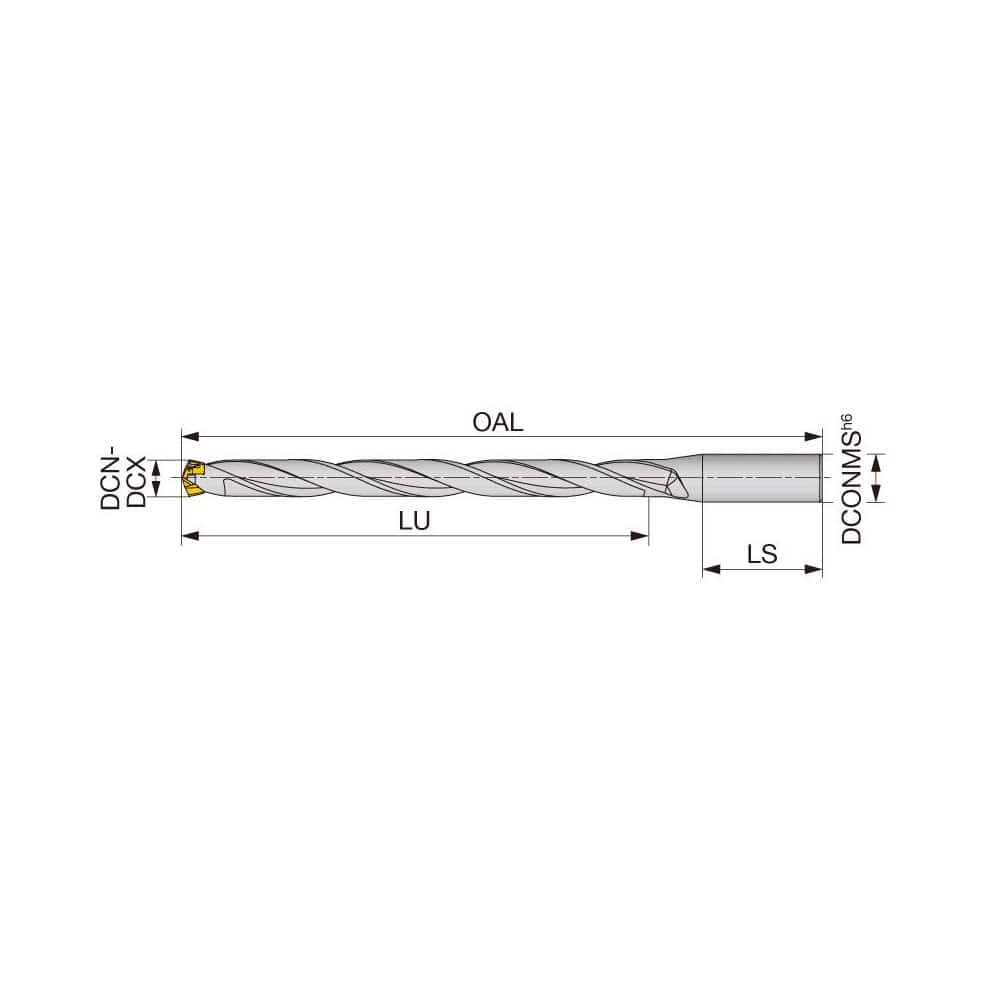

Replaceable Tip Drill: 15 to 15.9 mm Drill Dia, 183 mm Max Depth, 20 mm Straight-Cylindrical Shank Uses DMP Inserts, 253.53 mm OAL, Through Coolant
Item #: 13457510
Brand: Tungaloy
Model #: 6174350
Product Specifications
| Minimum Drill Diameter (mm) | 15.00 |
| Maximum Drill Diameter (mm) | 15.90 |
| Maximum Drill Depth (mm) | 183.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 160.00 to 200.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 150 |
| Overall Length (mm) | 253.53 |
| Series | TID |
| Toolholder Style | TID |
| Shank Length (mm) | 50.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
