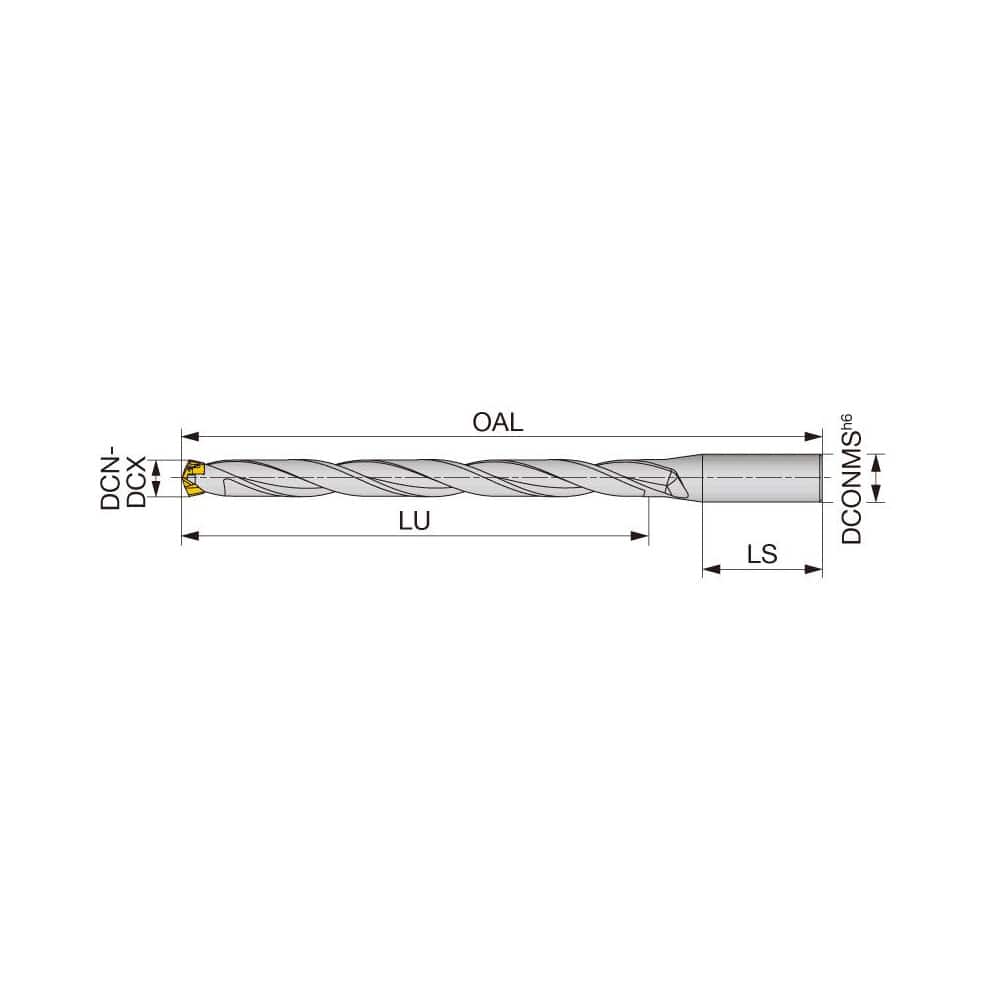

Replaceable Tip Drill: 22 to 22.9 mm Drill Dia, 267 mm Max Depth, 25 mm Straight-Cylindrical Shank Uses DMP Inserts, 354.56 mm OAL, Through Coolant
Item #: 13457262
Brand: Tungaloy
Model #: 6174371
Product Specifications
| Minimum Drill Diameter (mm) | 22.00 |
| Maximum Drill Diameter (mm) | 22.90 |
| Maximum Drill Depth (mm) | 267.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 200.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 220 |
| Overall Length (mm) | 354.56 |
| Series | TID |
| Toolholder Style | TID |
| Shank Length (mm) | 56.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
