Replaceable Tip Drill: 17 to 17.9 mm Drill Dia, 72 mm Max Depth, 18 mm Straight-Cylindrical Shank Uses DMP Inserts, 158.46 mm OAL, Through Coolant
Item #: 13457114
Brand: Tungaloy
Model #: 6784597

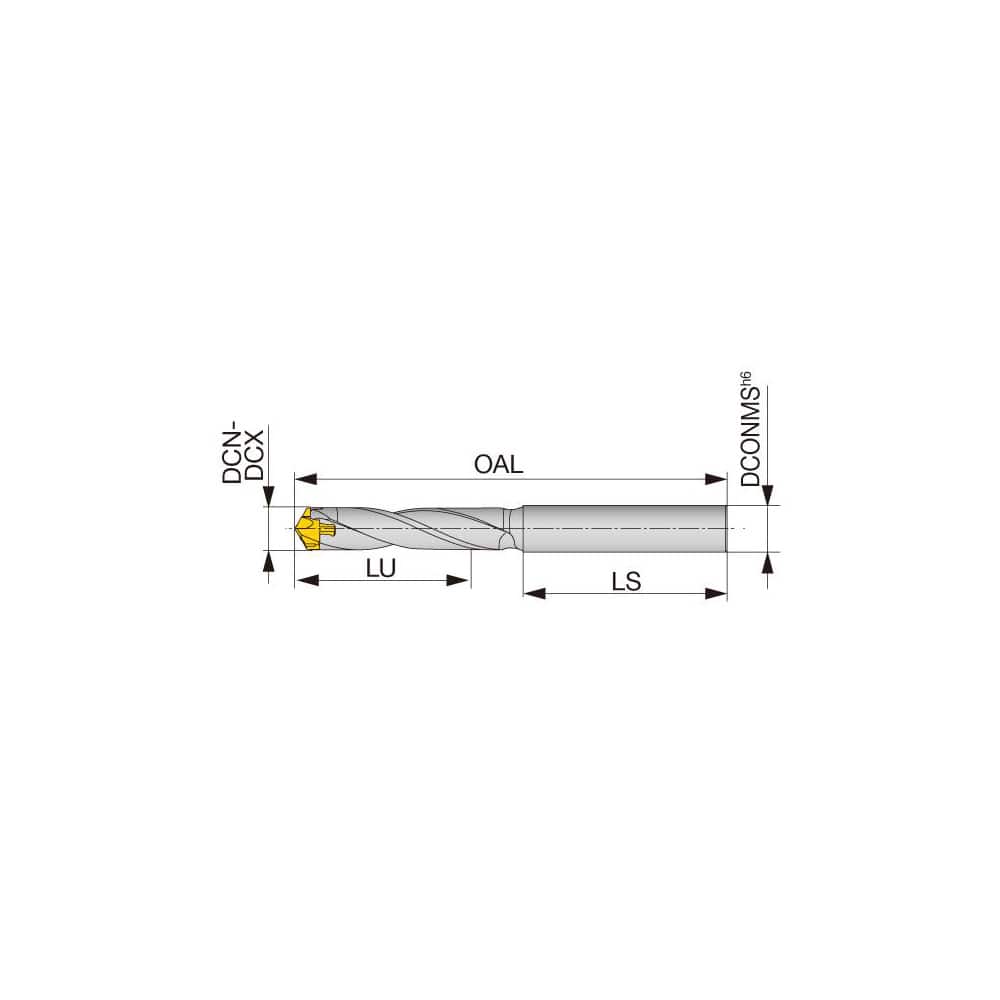

Product Specifications
| Minimum Drill Diameter (mm) | 17.00 |
| Maximum Drill Diameter (mm) | 17.90 |
| Maximum Drill Depth (mm) | 72.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 18.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 170 |
| Overall Length (mm) | 158.46 |
| Series | TID |
| Toolholder Style | TID |
| Shank Length (mm) | 70.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
